Introducing Fakro Low Pitch Flashing Kits
The UK weather can throw up particular challenges when it comes to keeping low pitch roofs watertight, especially around openings such as vents and roof windows. But Fakro’s low pitch flashing kits have transformed roof window installation for UK homes with shallow slopes.
Designed to work on roof pitches as low as 10°, these innovative kits ensure secure, watertight, and durability-focused window fittings for extensions, loft conversions, and outbuildings.
This guide covers everything UK buyers and installers need to know about ESA, EZA, and EHA flashing options, including product details, installation tips, and where to purchase for best value.

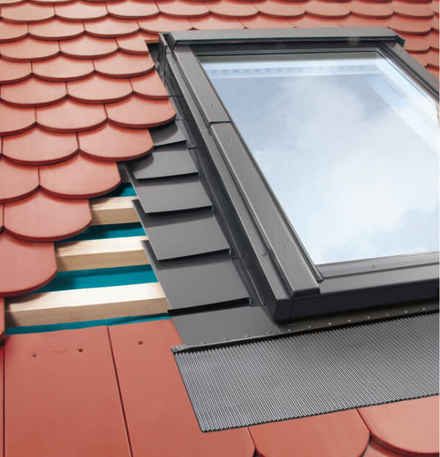

What Are Fakro Low Pitch Flashing Kits?
Flashing kits bridge the gap between roof windows and the roof covering, protecting against leaks and weather damage. Fakro’s low pitch options are designed to suit very shallow pitches as low as 10°, boosting water runoff and safeguarding low slope constructions against the UK’s notoriously wet climate.
Why Low Pitch Roofs Need Special Flashing
Low pitch roofs (10°–75°) challenge standard flashings due to slow water drainage and heightened leak risk. Fakro’s ESA, EZA, and EHA kits were developed specifically to combat these issues, reliably eliminating water ingress on projects where traditional flashings fail.
- Water runoff problems on shallow slopes
- Failure points for standard flashings below 15°
- Solutions engineered to improve fit and drainage
Fakro Low Pitch Flashing Kit Range
| Model | Roof Type | Pitch Range | Suitable Covering | Key Feature |
|---|---|---|---|---|
| ESA | Flat roof coverings (up to 10mm slate) | 10°–75° | Slate, felt, bitumen | Adds 10° tilt, gutter, insulation |
| EZA | Profiled tile \& interlocking slate (≤45mm) | 10°–75° | Clay/concrete tiles | Sponge seals, 10° tilt, gutter |
| EHA-P | High-profile tiles (up to 90mm) | 10°–75° | Deep-profile/clay tile | Deeper apron, gutter, insulation |
Each kit features:
- Aluminium construction (RAL7022 Umbra Grey)
- Four-part system: lower, upper, sides with glued insulation
- Sponge seals along side channels for wind/rain/snow protection
- Integrated gutter for condensation control.
Installation and Compatibility
All Fakro low pitch flashings fit standard Fakro roof window sizes and types (centre-pivot, top-hung). Models are rated for roof pitches between 10° and 75° and support various window installation depths (N, V, or J levels). Horizontal modular installs need 20cm spacing between windows for effective sealing and water management.
- Compatibility with pitched and flat roof coverings up to 90mm profile
- Sponge seals and insulated channels for maximised water protection
- Easy pitch adjustment for installers.
Materials and Design Features
- Long-life aluminium, polyester coated for extra weather resistance
- Insulation locked into upper/side elements for better heat retention
- Built-in drainage gutter keeps condensation away from your window, protecting timber and lining.
- Finished in modern Umbra Grey for visual compatibility with most UK roofing materials
Fakro’s unique 10° pitch increment and sponge seal innovation set it apart for low-pitch installations—a critical advantage in the UK market.
Best Applications in the UK Market
Ideal for:
- Single-storey extensions and garden rooms with flat or shallow roof angles
- Mansard conversions in older UK properties
- Modular outbuildings and commercial units where standard slopes are impractical
- Properties in rainy zones or coastal regions at risk of water pooling.
Buying Fakro Low Pitch Flashing Kits in the UK
Here at Flat Roofing Systems, we are pleased to supply the range of Fakro low pitch flashing kits for fast UK delivery.
We also have the flashing kits for Standing seam metal flat roof , Fakro flashing kits for plain tiles as well as many other types of flashing kit and a full range of Fakro flat roof windows.
We are also pleased to host Fakro on our "meet the manufacturer" days, from time to time.
Fakro Low Pitch Flashing Kits FAQs
- What’s the minimum slope for Fakro kits? 10°, suitable for many challenging UK roof installations.
- Can I use EHA-P flashings with corrugated roofing? Yes, designed for profiles up to 90mm.
- DIY installation possible? Professional installation is recommended for optimal water management, insulation, and warranty.
- Are modular horizontal window installations possible? Yes, with 20cm gap between window frames to protect integrity.
Rounding Up
Fakro low pitch flashing kits deliver outstanding performance, robust weather protection, and versatile solutions for shallow roof slopes in the UK. Their precise engineering, reliable insulation, and enhanced water drainage make them the top choice for building professionals and homeowners seeking watertight roof window installations—even on the lowest UK roof pitches.
