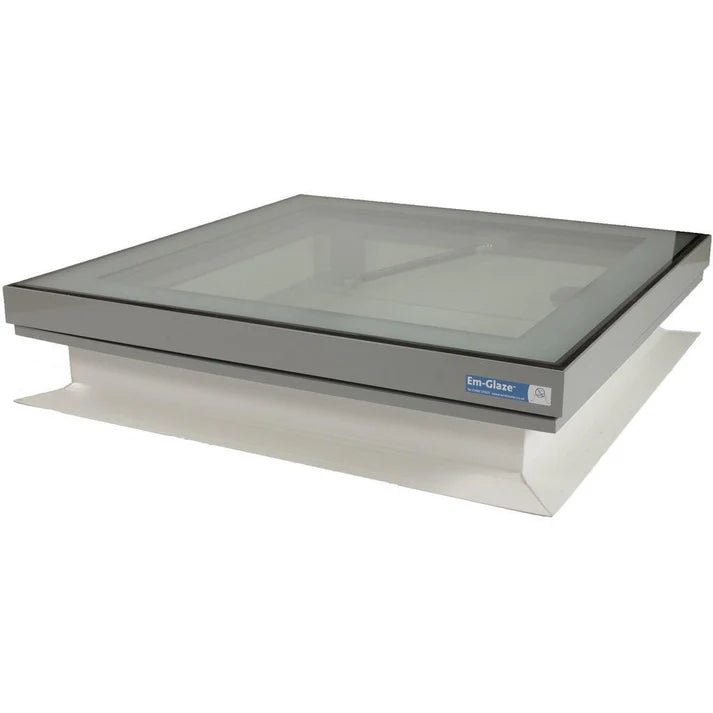

Whitesales Em.Glaze Flat Glass Rooflight with Eco Vertical Upstand Kerb - Electric Opening
Manufacturer/Brand: Whitesales
SKU:ADS04K115BH2AA
In stock
Whitesales Em.Glaze Flat Glass Rooflight. Featuring an electrically operated opening system, this rooflight combines modern design with advanced functionality, perfect for any flat roof installation.
The Em-Glaze modular flat glass rooflight is designed for those who seek the perfect blend of style, efficiency, and advanced functionality. This prefabricated rooflight offers a sleek, minimalistic finish that enhances the aesthetic appeal of any interior or exterior space.

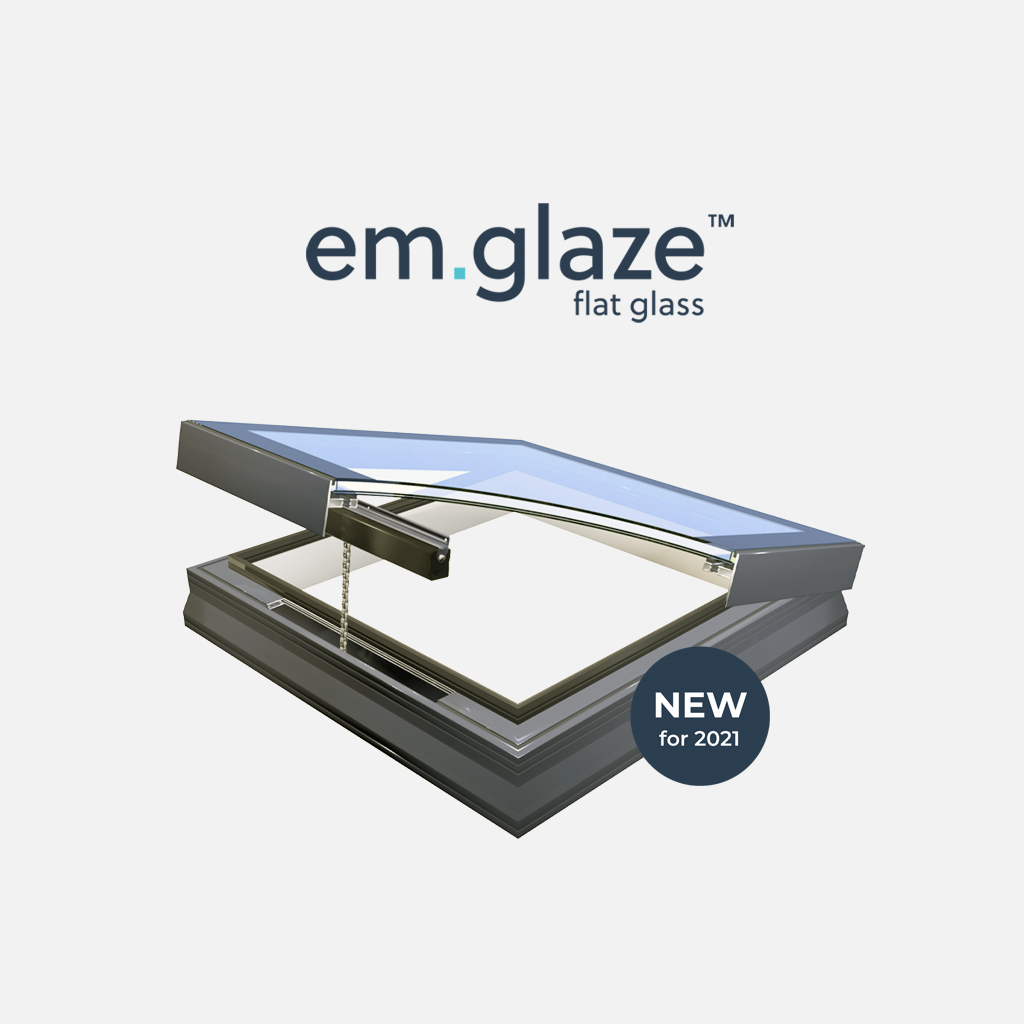

The powered hinged opening of the Em-Glaze rooflight provide maximum ventilation, allowing for rapid air movement by opening up to 200mm. The electric actuator operation can be easily controlled by a wall-mounted open/close switch, with additional options for wind, rain, and temperature sensors, as well as CO2 monitors and various control panels (available separately).
Each Em-Glaze rooflight is manufactured with flat sealed glass units, incorporating a fully welded aluminium frame and cill detail for durability and long-lasting performance. The visible aluminium is polyester powder coated in Anthracite Grey RAL7016 and white internally as standard, with custom powder coating options available to suit your specific design needs.
The flush design ensures efficient rainwater drainage, while the silk print edge guarantees that the double-glazed unit maintains unparalleled insulation value throughout its lifespan. The 32mm hermetically sealed Low E, argon-filled units are standard, featuring a warm edge spacer for high performance. For those requiring even higher thermal values, a triple glazing option is available.
Key Features
Glazing:
- Clear Double Glazed: 8mm toughened outer pane.
- 16mm argon-filled cavity with warm edge spacer bar.
- 8.8mm laminated Low E inner pane for exceptional insulation
Frame:
- 5mm Extruded Aluminium Glazing Frame.
- Finished in Anthracite Grey (RAL 7016)
Upstand:
- Electrically Operated 150mm PVC Vertical Upstand
What`s Included:
- Double Glazed Rooflight.
- Eco Vertical upstand kerb, 150mm high.
- Electric Opening Motor + Wall switch.
We also offer additional controls, sensors and packages to further enhance your rooflight installation.

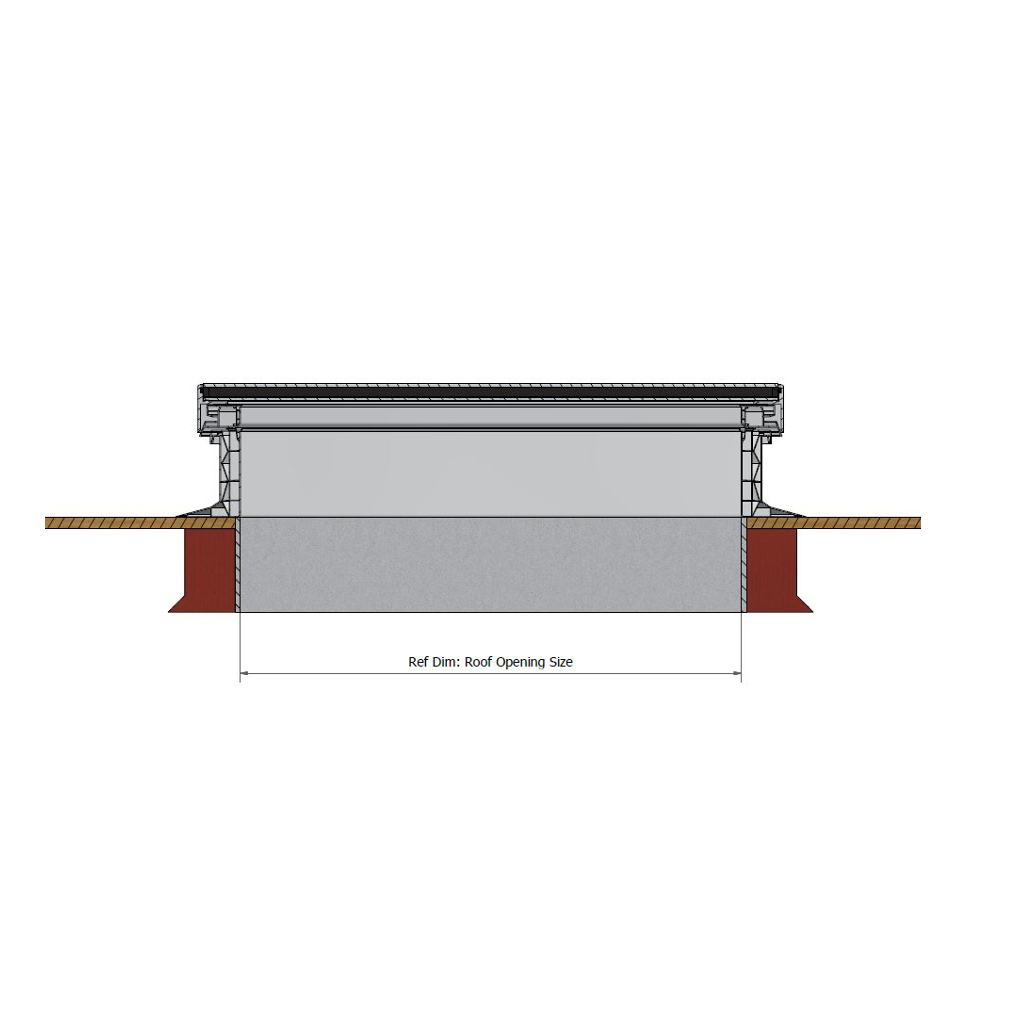

The size shown in the drop-down box is the size of the hole or opening in your roof. The window you receive will fit this opening, but its overall dimensions will be slightly larger. See product image for reference.
Please Note:
It is recommended to install these flat glass rooflights at a slight angle to ensure proper rainwater runoff and prevent standing or ponding water on the glass.
Additional Information for Whitesales Em.Glaze Flat Glass Rooflight with Eco Vertical Upstand Kerb - Electric Opening
Technical Information
Delivery Information
Whitesales Rooflights and accessories are delivered nationwide with a next working day service if ordered before 11:00 am. While we aim for prompt delivery, please note that this is not guaranteed and should allow 1 - 3 working days. For deliveries to the Highlands and Island areas, it typically takes 3 - 5 working days.
We strongly recommend refraining from booking, scheduling, or commencing any works until you've received your complete materials order. Your satisfaction and seamless project execution are our top priorities.
FAQ's
Whitesales Em.Glaze Flat Glass Rooflight. Designed for modern aesthetics and superior performance, this roof window comes complete with a 150mm high Eco Vertical upstand kerb and a manual opening spindle, making it a perfect addition to any flat roof.
Glazing:
Clear Double Glazed: 8mm toughened outer pane.
16mm argon-filled cavity with warm edge spacer bar.
8.8mm laminated Low E inner pane for optimal insulation.
Frame:
5mm Extruded Aluminium Glazing Frame.
Finished in Anthracite Grey (RAL 7016).
Upstand:
Manual Hinged Opening
PVC 150mm Vertical with Spindle Gear (opening rod sold separately)
U-Value: 1.24 W/m²K for excellent thermal performance.
Warranty: 10 Years for peace of mind.
Roof Pitch: Suitable for roofs with a 5° - 15° pitch.
Fixings: All fixings included for easy installation
