The Marley Mendip Double Pantile Concrete Interlocking Roof Tile combines the traditional appearance of a classic pantile with the strength and reliability of a modern interlocking roofing tile. Featuring a double pantile profile, the Mendip tile provides a visually appealing finish suitable for a wide range of residential and commercial roofing projects.

Designed for performance as well as aesthetics, the standard Marley Mendip tile can be installed on roof pitches as low as 15° when using smooth finish tiles, making it suitable for many new build and refurbishment projects. The strong concrete construction delivers excellent durability and weather resistance, while the interlocking design ensures efficient installation and dependable protection against the elements.

Marley’s concrete interlocking tiles are manufactured to the highest industry standards using carefully sourced materials. With over 100 years of roofing expertise, Marley is a trusted name in the roofing industry, known for producing reliable, long-lasting roofing solutions.

The Marley Mendip tile also supports environmentally responsible construction. All Marley concrete interlocking tiles can achieve an A+ rating in the Building Research Establishment’s Green Guide to Specification, representing the lowest environmental impact. In addition, projects using Mendip tiles may gain additional BREEAM credits thanks to Marley’s accreditation to the BES 6001 Responsible Sourcing framework.

Available in a range of attractive colours, the Marley Mendip tile provides a timeless roof finish that complements both traditional and modern properties.

Require a compatible ridge or hip tile for Marley Mendip roof tiles.

Marley Mendip is also available in a New Low Pitch 12.5° Version.

Available Colours:

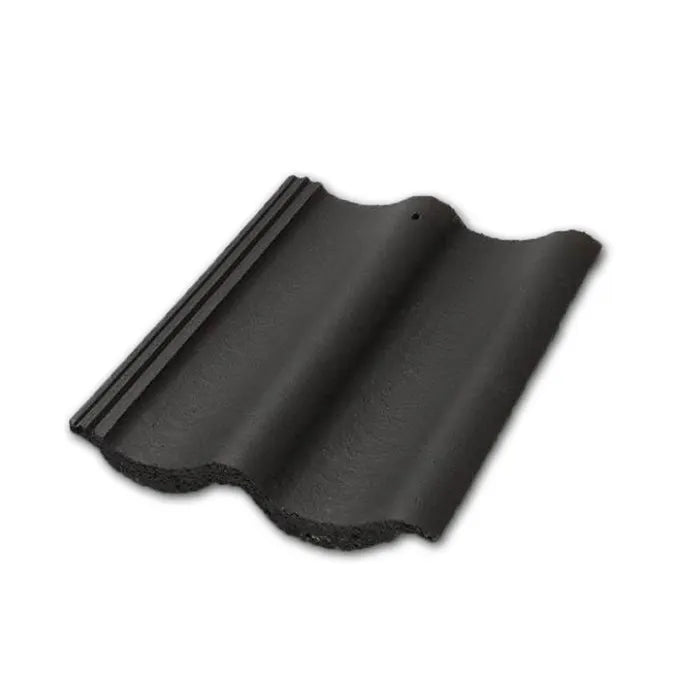

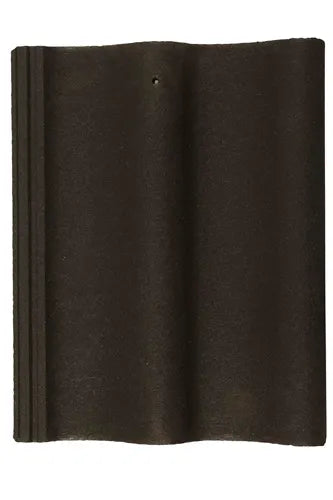

• Anthracite.

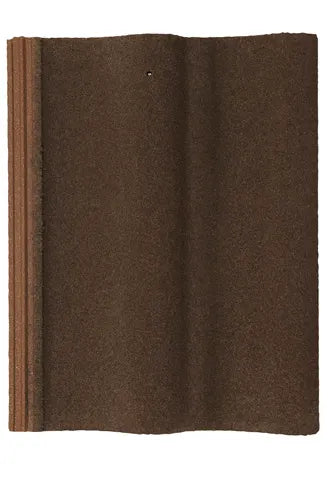

• Antique Brown.

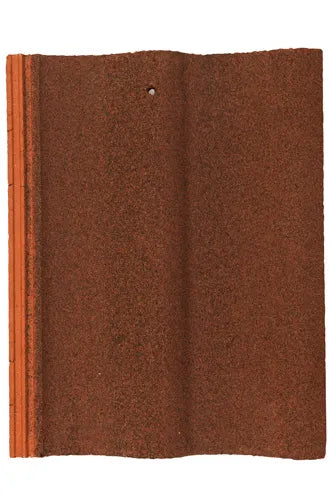

• Dark Red.

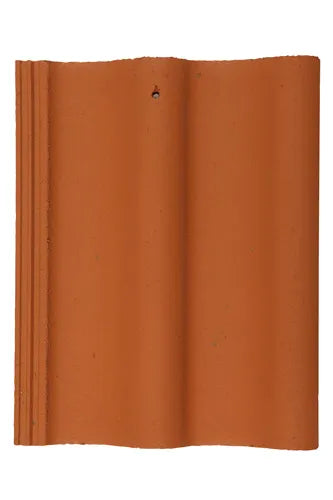

• Mosborough Red.

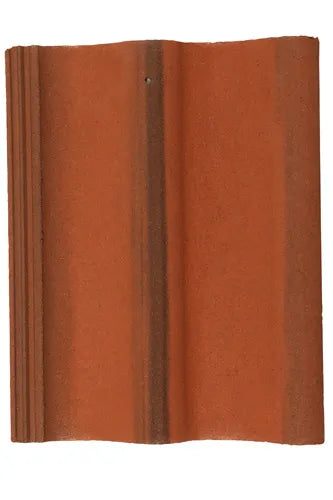

• Old English Dark Red.

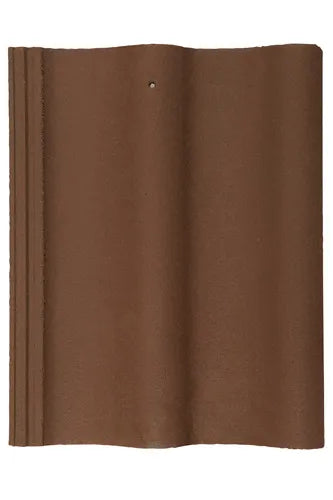

• Smooth Brown.

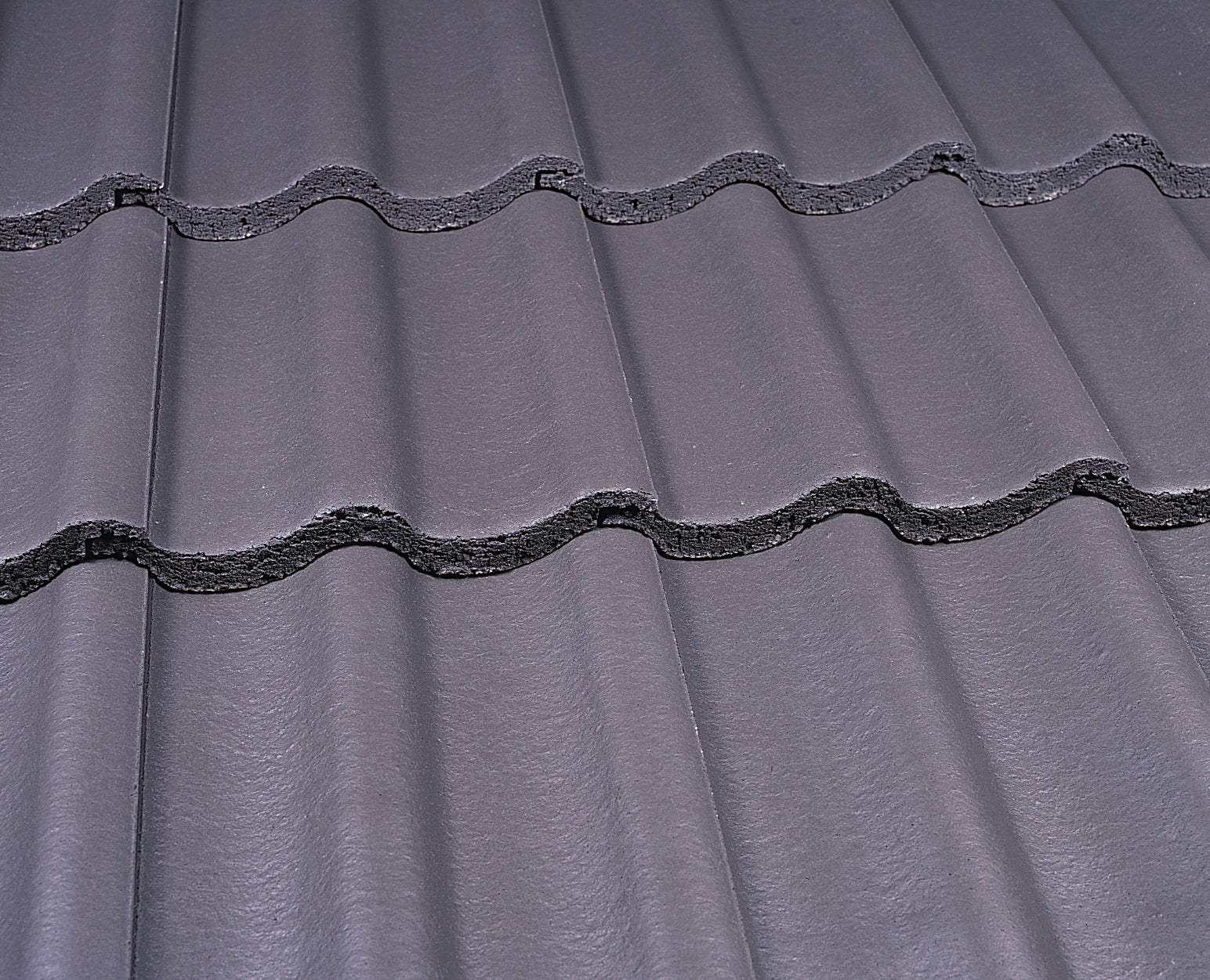

• Smooth Grey.

Key Features:

• Classic double pantile profile with elegant flowing lines.
• Minimum pitch of 15° for smooth finish tiles.
• Durable concrete interlocking roof tile design.
• Excellent covering capacity for efficient installation.
• A+ rated in the BRE Green Guide to Specification.
• Manufactured under BES 6001 Responsible Sourcing accreditation.
• Suitable for new build, extensions, and roof refurbishments.
• Available in multiple long-lasting colour options.

Technical Specification – Marley Mendip Standard Roof Tile

Tile Size: 420mm x 330mm.

Minimum Roof Pitch:

• 17.5° Smooth Finish (75mm headlap).
• 15° Smooth Finish (100mm headlap).
• 30° Granular Finish (75mm headlap).
• 25° Granular Finish (100mm headlap).

Maximum Roof Pitch: 90°.

Minimum Headlap: 75mm (dependent on roof pitch and tile surface).

Maximum Gauge: 345mm.

Cover Width: 298mm (nominal).

Covering Capacity:

• 9.7 tiles per m² at 75mm headlap.
• 10.5 tiles per m² at 100mm headlap.

Stock Availability

If a particular colour is showing as out of stock online, please get in touch with our team before ruling it out. Availability changes daily and the website may not always reflect the most up-to-date stock levels. We may still be able to source or allocate what you need.

Sample Tile Requests

If you’d like a Mendip tile sample, please open the Technical Information tab below and follow the link through to the Marley website. Once there, look for the red button labelled Request Sample.

Please note, samples are supplied directly by Marley and not by All Flat Roofing Supplies Ltd.

Marley Mendip roof tiles provide a dependable, attractive roofing solution trusted by contractors and homeowners across the UK.

A 10% breakage allowance should be allowed/considered when ordering ( breakages that occur from/during transportation within the 10% allowance will not be replaced.)
