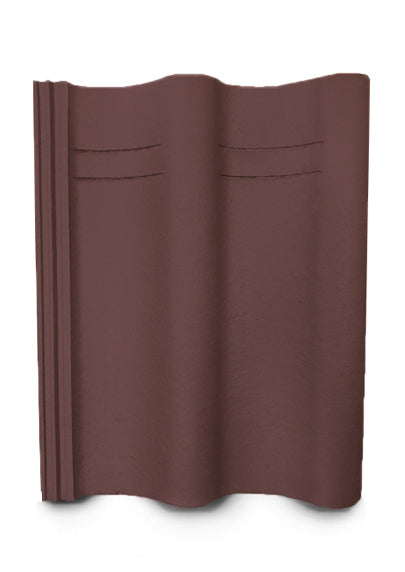

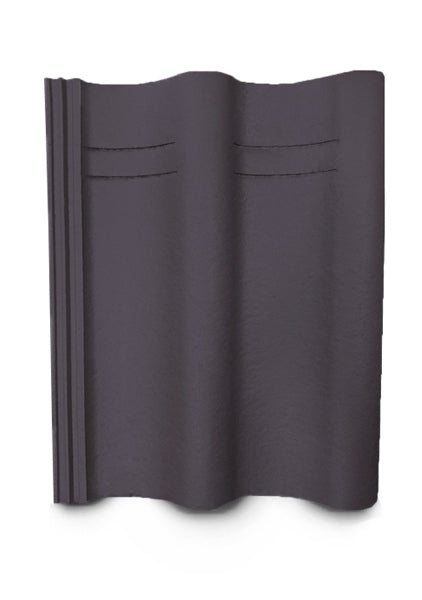

shop@flatroofingsystems.co.ukMarley Mendip 12.5° Low Pitch Concrete Interlocking Roof Tile
Manufacturer/Brand: Marley
SKU:MENDIP/LOW/GREY
In stock
Couldn't load pickup availability
The Marley Mendip 12.5° Low Pitch Concrete Roof Tile is specifically designed for roof pitches as low as 12.5°, making it an ideal solution for extensions, refurbishments and low-slope residential projects where standard tiles simply won’t perform.
An adaptation of the Standard Mendip profile from Marley, the 12.5° Low Pitch version offers enhanced weather resistance through its anti-capillary channels and the absence of nail holes, providing additional protection against wind-driven rain at lower roof pitches.

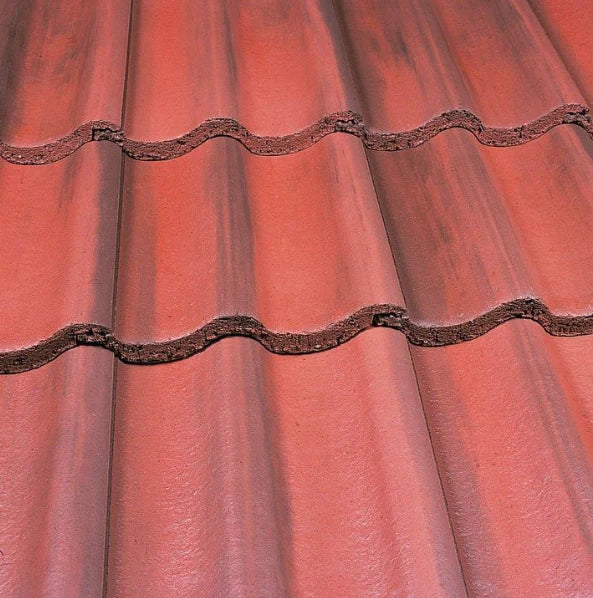

Manufactured from durable concrete and finished in Smooth Grey, Smooth Brown or Old English Red Smooth. This interlocking tile delivers a clean, modern appearance while maintaining the traditional strength and reliability expected from a concrete roofing system.
Key Features:
- Suitable for pitches from 12.5° to 44°.
- Minimum pitch of 12.5° with 100mm headlap.
- Anti-capillary channels for enhanced weather protection.
- No nail holes for improved resistance at low pitches.
- Ideal for one-storey extensions and refurbishment projects.
- Achieves an A+ rating in the BRE Green Guide to Specification.
- Strong, durable concrete construction.
- Interlocking design for secure installation.
Technical Specifications:
- Material: Concrete.
- Colour: Smooth Grey, Brown & Old English Red.
- Size: 420mm x 330mm.
- Minimum Pitch: 12.5° (100mm headlap required).
- Covering Capacity: 9.7 tiles per m² (at 75mm headlap).
- Tiles per Pallet: 192.
For rafter lengths up to 6m at pitches between 12.5° and 44°, a 100mm headlap is required.
Require a compatible ridge or hip tile for Marley Ludlow Plus roof tiles.
The Mendip 12.5° Low Pitch tile combines dependable British manufacturing with practical design, offering peace of mind where low roof pitches demand extra performance. A smart, reliable choice when you need a tile that works harder so your roof doesn’t have to.
Stock Availability
If a particular colour is showing as out of stock online, please get in touch with our team before ruling it out. Availability changes daily and the website may not always reflect the most up-to-date stock levels. We may still be able to source or allocate what you need.
Sample Tile Requests
If you’d like a Ludlow Plus tile sample, please open the Technical Information tab below and follow the link through to the Marley website. Once there, look for the red button labelled Request Sample.
Please note, samples are supplied directly by Marley and not by All Flat Roofing Supplies Ltd.
A 10% breakage allowance should be allowed/considered when ordering ( breakages that occur from/during transportation within the 10% allowance will not be replaced.)
