shop@flatroofingsystems.co.ukUnilin FR/ALU Foil Faced Flat Roof Insulation Board Packs - Mechanically Fixed Systems
Manufacturer/Brand: Flat Roofing Systems
SKU:FR/ALU/150MM-PACKS
In stock
Couldn't load pickup availability

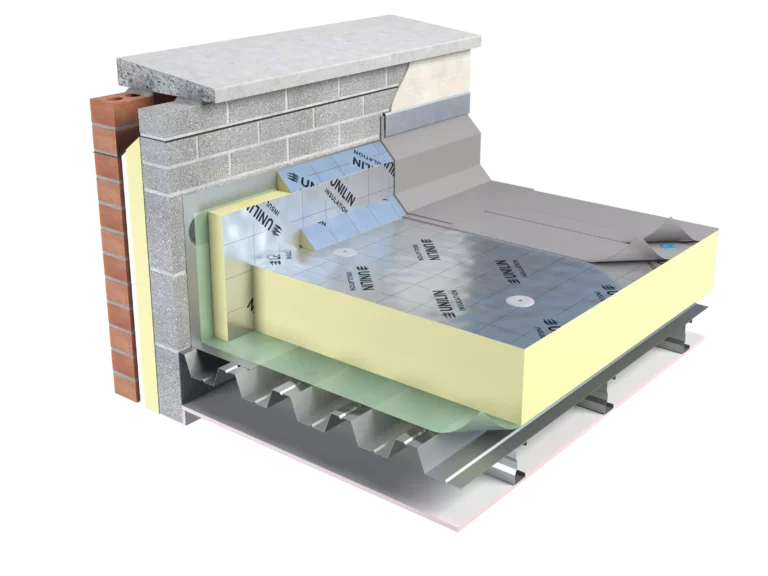

The Unilin FR/ALU Foil Faced Flat Roof Insulation Board is a high-performance PIR (Polyisocyanurate) insulation board designed specifically for use beneath mechanically fixed, loose-laid single ply roofing membranes. Manufactured with vapour-tight, gas-tight aluminium foil facings, FR/ALU delivers excellent thermal performance while helping to reduce heat loss and improve the overall energy efficiency of flat roof constructions.
Suitable for use on timber, metal and concrete roof decks, Unilin FR/ALU boards provide a durable and lightweight insulation solution for both new build and refurbishment projects. The boards offer outstanding thermal efficiency with a low thermal conductivity of 0.022 W/mK, helping to achieve demanding building regulation requirements whilst minimising roof build-up thickness.
Each board measures 2400mm x 1200mm and is supplied in full pack quantities only. Available thicknesses range from 25mm to 150mm, allowing the correct specification to be selected for a wide range of flat roofing applications.
Please Note: Unilin FR/ALU is designed for use beneath mechanically fixed single ply membrane systems and is not suitable for use with built-up bituminous roofing systems, torch-on felts, mastic asphalt or liquid applied roofing systems. For these Systems please see Unilin FR/BGM.
Key Features
- High-performance PIR flat roof insulation board.
- Suitable for mechanically fixed single ply roofing systems.
- Vapour-tight aluminium foil facings.
- Excellent thermal conductivity of 0.022 W/mK.
- Suitable for metal, timber and concrete roof decks.
- Compressive strength of 150kPa at 10% compression.
- Large board size of 2400mm x 1200mm.
- Lightweight and easy to handle.
- Available in thicknesses from 25mm to 150mm.
- Helps achieve low U-values and improve building energy efficiency.
- Manufactured by Unilin, formerly known as Xtratherm.
Applications
- Unilin FR/ALU insulation boards are suitable for use beneath:
- Mechanically fixed single ply roofing membranes.
- Commercial flat roofing projects.
- Industrial roofing applications.
- Residential flat roofs.
- New build and refurbishment projects.
Installation
The boards should be installed over a suitable vapour control layer in a break-bonded pattern. All board joints should be fully supported by the roof deck and secured using approved mechanical fixings designed for the roof construction. Additional perimeter fixings may be required depending on roof location, height and wind loading requirements.
Technical Information
Property Value
Board Size: 2400mm x 1200mm.
Thickness Range: 25mm - 150mm.
Thermal Conductivity: 0.022 W/mK.
Compressive Strength: 150kPa @ 10% Compression.
Facing: Aluminium Foil.
Reaction to Fire: Euroclass E.
Insulation Type: PIR (Polyisocyanurate).
Typical U-Values
Roof Construction. Thickness Required. U-Value.
Concrete Deck 150mm 0.15 W/m²K.
Metal Deck 150mm 0.15 W/m²K.
Timber Deck 140mm 0.15 W/m²K.
Concrete Deck 120mm 0.18 W/m²K.
Metal Deck 125mm 0.18 W/m²K.
Timber Deck 120mm 0.17 W/m²K.
Concrete Deck 110mm 0.20 W/m²K.
Metal Deck 110mm 0.20 W/m²K.
Timber Deck 100mm 0.20 W/m²K.
U-values shown are indicative only and may vary depending on roof construction, deck type and fixing specification.
Available Thicknesses
25mm, 30mm, 40mm, 50mm, 60mm, 70mm, 75mm, 80mm, 90mm, 100mm, 110mm, 120mm, 125mm, 130mm, 140mm and 150mm.
Supplied in manufacturer pack quantities only. Pack quantities vary depending on board thickness and are displayed within the thickness selection options.
Alongside our insulation board range, we offer a full selection of thermally broken tube washers, insulation fixings and roofing fasteners suitable for a wide variety of flat roofing applications.
Bulk Discounts & Stock Availability
Looking for larger quantities or found this product showing as out of stock?
Please contact us with your project details, as we may be able to offer discounted rates on larger orders. Our stock levels and supplier availability change regularly and may not always be reflected on the website in real time.
Get in touch with our team today and we'll be happy to check current availability, lead times, and provide a competitive quotation for your project.
Additional Information for Unilin FR/ALU Foil Faced Flat Roof Insulation Board Packs - Mechanically Fixed Systems
Delivery Information
Delivery Information
The Unilin Flat Roof Insulation Board range is delivered directly to your chosen address by our trusted delivery partners, typically within 2–4 working days, subject to stock availability.
Deliveries are usually made using large HGV vehicles, which may include articulated lorries. Please ensure there is suitable access to your property and advise us of any restrictions, such as narrow roads, weight limits, low bridges, or restricted access areas, before placing your order. Failure to notify us of potential access issues may result in delivery delays or additional charges.
Insulation boards are supplied in manufacturer pack quantities on timber pallets and are offloaded using a tail lift and pallet truck. Delivery is made to the kerbside or nearest safe accessible point only. The driver is unable to move pallets across gravel, grass, slopes, uneven surfaces, or into buildings.
We strongly recommend that you do not arrange, schedule, or commence any roofing works until you have received and checked your complete order. While we always aim to deliver within the stated lead times, delays can occasionally occur that are outside of our control.
Collection from our depot may also be available, subject to stock availability. Please contact us before travelling to confirm stock levels and collection arrangements.
