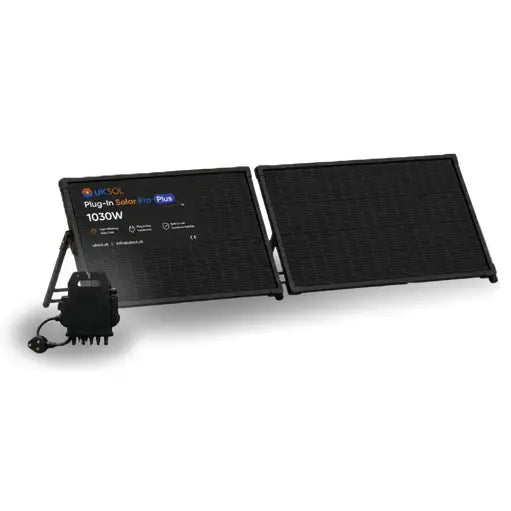

shop@flatroofingsystems.co.ukUKSOL 1030W Pro Compact Plug-In Solar Panel Hybrid Mount Kit
Manufacturer/Brand: UKSOL Solar
SKU:UKS-PRO-P-2-1030-MZ1
In stock
Couldn't load pickup availability
Generate more of your own renewable electricity at home with the UKSOL 1030W Pro Compact Plug-In Solar Panel Hybrid Mount Kit. Featuring two high-efficiency 515W solar panels, a smart 799VA microinverter and adjustable hybrid mounting system, this powerful compact solar kit provides a straightforward way to add over 1kW of solar panel capacity to your home.
The UKSOL UKS-PRO-P-2-1030-MZ1 system combines 2 x 515W TOPCon N-Type monocrystalline solar panels to deliver an impressive 1030W total peak panel capacity. Each module provides up to 23.2% efficiency, helping maximise electricity generation from the available installation area.
The oversized 1030W solar array is paired with a 799VA smart microinverter, allowing the panels to provide strong generation potential across changing daylight conditions while the inverter controls the AC output supplied to the home.
Once correctly installed and connected, the electricity generated can be used within your property, helping reduce the amount of electricity drawn from the grid during daylight hours.
COMPLETE 1030W PLUG-IN SOLAR KIT
Designed as a convenient home solar solution, the Pro Compact combines twin high-output solar panels, a smart microinverter and adjustable hybrid mounting system into one package.
With more than 1kW of installed solar panel capacity, the system is particularly suited to customers looking for greater generation potential from a compact two-panel installation.
HIGH-EFFICIENCY 515W TOPCon N-TYPE PANELS
At the heart of the system are two 515W TOPCon N-Type monocrystalline solar panels, providing a combined peak capacity of 1030W.
Each panel features 108 cells, up to 23.2% module efficiency and a positive 0 to +5W power tolerance, providing a modern, high-performance solution for residential renewable electricity generation.
OVERSIZED SOLAR ARRAY
Although the panels provide a combined peak capacity of 1030W, the supplied microinverter has a maximum AC output of 799VA.
This oversized panel-to-inverter configuration can help the system reach useful output earlier and maintain stronger generation under less-than-ideal conditions, such as mornings, evenings, cloudy weather and periods of reduced sunlight. Maximum instantaneous AC output remains limited by the microinverter.
SMART APP MONITORING
Built-in Wi-Fi and Bluetooth connectivity provides convenient access to solar performance information through a compatible smartphone monitoring app.
This allows you to keep track of your system's electricity generation and better understand how your solar panels are performing throughout the day.
TWO INDEPENDENT MPPT CHANNELS
The smart microinverter incorporates two independent MPPT channels, allowing the input from each solar panel to be managed individually.
This helps optimise the available output from the two-panel array as sunlight and operating conditions change.
ADJUSTABLE HYBRID MOUNTING SYSTEM
The supplied hybrid mounting solution provides an adjustable tilt range from 15° to 45°, allowing the panels to be positioned at an appropriate angle for the installation.
For best performance, panels should be installed in a sunny, open location with minimal shading and positioned to make the best use of available daylight.
BATTERY STORAGE COMPATIBLE
The system is compatible with suitable battery storage solutions, providing the potential to expand your home energy setup in the future and make greater use of the renewable electricity generated by your solar panels.
BUILT FOR OUTDOOR USE
Designed for outdoor solar applications, the system features an IP67-rated microinverter and IP68-rated solar panel junction boxes.
The kit also meets applicable RoHS II and WEEE requirements, supporting responsible use and end-of-life handling of electrical and electronic components.
Key Features
- 1030W total solar panel peak capacity.
- 2 x high-output 515W solar panels.
- TOPCon N-Type monocrystalline cell technology.
- Up to 23.2% module efficiency.
- Positive 0 to +5W power tolerance.
- 799VA smart microinverter.
- 96.7% peak microinverter efficiency.
- Oversized solar array for improved generation potential.
- Two independent MPPT channels.
- Built-in Wi-Fi and Bluetooth.
- Smartphone app performance monitoring.
- Battery storage compatible.
- Adjustable 15° to 45° mounting angle.
- 230V single-phase AC output.
- IP67-rated microinverter.
- IP68-rated solar panel junction boxes.
- Black finish.
- Compact two-panel home solar solution.
Technical Specification
- Product Code: UKS-PRO-P-2-1030-MZ1.
- Total Solar Panel Peak Power: 1030W.
- Solar Panels Supplied: 2 x 515W.
- Cell Technology: TOPCon N-Type Monocrystalline.
- Cells: 108 per panel / 216 total.
- Module Efficiency: Up to 23.2%.
- Power Tolerance: 0 to +5W.
- Maximum System Voltage: 1500V DC.
- Microinverter Maximum AC Output: 799VA.
- Microinverter Peak Efficiency: 96.7%.
- AC Output Voltage: 230V AC Single Phase.
- AC Output Frequency: 50Hz.
- Maximum AC Output Current: 3.5A.
- MPPT Channels: 2 Independent Channels.
- Recommended Module Range: 300W–730W.
- Connectivity: Built-In Wi-Fi & Bluetooth.
- Monitoring: Smartphone Monitoring App.
- Microinverter Protection Rating: IP67.
- Solar Panel Junction Box Rating: IP68.
- Adjustable Tilt Range: 15°–45°.
- Colour / Finish: Black.
- Compliance: RoHS II & WEEE.

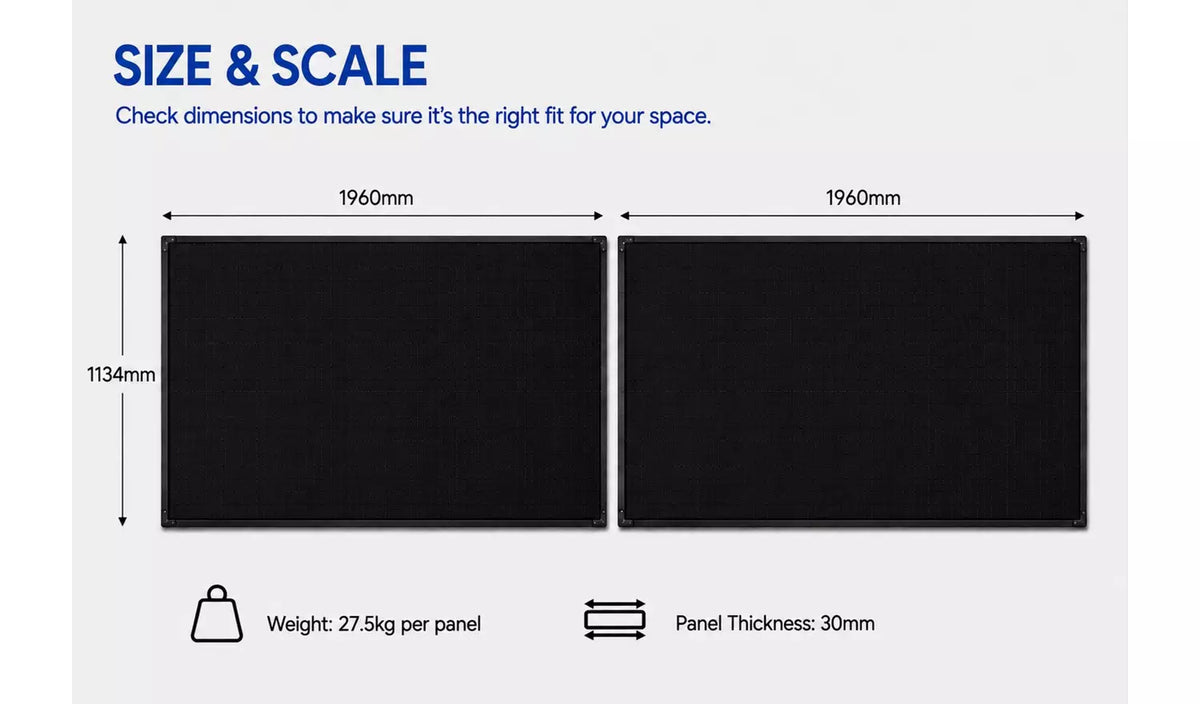

Dimensions
Individual Solar Panel: Approx. 1960mm x 1134mm x 30mm
Two Panels Positioned Side-by-Side: Approx. 3920mm x 1134mm, excluding installation spacing and mounting requirements.
Generate More of Your Own Electricity
With 1030W of high-efficiency solar panel capacity, smart app monitoring and a flexible adjustable mounting system, the UKSOL Pro Compact provides a powerful two-panel solution for homeowners looking to generate more of their own renewable electricity.
The combination of high-output 515W panels and a 799VA microinverter makes the system particularly attractive where customers want to maximise generation potential from a relatively compact solar installation.
Order your UKSOL 1030W Pro Compact Plug-In Solar Kit today and start putting more daylight to work for your home.
Please Note:
Solar generation will vary according to factors including location, time of year, weather conditions, panel orientation, temperature and shading. The stated wattage represents the rated capacity of the solar panels and does not guarantee continuous generation at this level.
This kit is designed for ground or solid wall mounted use only and requires suitable ballast to secure the mounting system. Ballast is NOT included. This product is not suitable for balcony installations.
For further information and answers to commonly asked questions, please refer to the FAQs tab below.
*** NOT AVAILABLE FOR DELIVERY UNTIL OCTOBER 2026 ***
Additional Information for UKSOL 1030W Pro Compact Plug-In Solar Panel Hybrid Mount Kit
Delivery Information
*** NOT AVAILABLE FOR DELIVERY UNTIL OCTOBER 2026 ***
Plug-In Solar Kit Delivery Information
Plug-In Solar Kits are large, heavy and delicate items that require careful handling. For this reason, deliveries are generally made using a two-person delivery service to help ensure your kit reaches you safely and securely.
Current typical delivery lead times are approximately 2–3 weeks from order processing. These are estimated lead times and may occasionally vary due to circumstances outside our control. Where we become aware of a delay, we will endeavour to keep you informed as soon as possible.
Most Solar Kits are delivered directly from the manufacturer to your chosen delivery address and are currently available for Mainland UK delivery only. Delivery arrangements may vary depending on your location.
We strongly recommend that someone is present to accept and inspect the delivery, as these are large, heavy and high-value items and are not generally suitable for being left unattended or in a designated safe place.
Important Delivery Information:
Please inspect the external packaging carefully when your delivery arrives.
Photograph any visible damage before opening, moving or installing the goods and report this to us as soon as possible.
Please ensure there is suitable access for the delivery vehicle and delivery team.
Advise us before delivery of any road restrictions, narrow lanes, restricted access, gates or other circumstances that could prevent or delay delivery.
Do not arrange installers or installation work until your complete order has been received and checked.
Please note that if a delivery cannot be completed due to nobody being available to accept the goods or because of unreported access restrictions, additional failed-delivery and redelivery charges may apply. Where additional charges are incurred, redelivery may not be arranged until these charges have been agreed and paid in full.
FAQ's
Getting Started
What is Plug-In Solar?
Plug-in solar is a simple, small-scale solar system that generates electricity for use in your home. The solar panel produces electricity which is converted by a microinverter into AC power suitable for household use. The system connects to a suitable electrical socket, allowing the generated solar energy to help reduce the amount of electricity your home draws from the grid. Any generation not used at that moment may flow to the grid.
When can I legally use a Plug-In Solar Kit?
New rules permitting qualifying plug-in solar systems in Great Britain came into effect on 27 August 2026. Systems must meet the relevant requirements and be installed and used in accordance with the manufacturer's instructions.
Are UKSOL Plug-In Solar Kits Compliant?
UKSOL Plug-In Solar Pro kits have compliant listings within the Plug-in Solar category of the ENA Connect Direct Type Test Register. Compliance applies to the complete listed system, so always check the specific model or kit reference before installation.
What is Included in a UKSOL Plug-In Solar Kit?
Each kit includes the required UKSOL solar panel(s), ENA-compliant microinverter, connection cables (4m AC cable and 2m DC cables) and purpose-designed mounting system. Exact contents vary by model, so always check the individual product specification before installation.
How Long Are the Cables Supplied with the Kit?
The Compact Kit includes a 4m AC cable, while the Duo Kit includes a 4m AC cable and 2m DC connection cables.
Suitability and installation
Is Plug-In Solar Suitable for Every Home?
No. You will need a suitable unshaded outdoor location, secure mounting position and an appropriate outdoor electrical socket. Always follow the manufacturer's installation and positioning requirements, and consult a qualified electrician if you are unsure about your property's electrical installation.
Can I Use a UKSOL Kit at a Flat or on a Balcony?
UKSOL ground-mount kits are not designed for balcony installation. They should only be installed in locations approved within the manufacturer's instructions, with the correct mounting and securing requirements followed.
Do I need planning permission?
Requirements depend on the property, location and mounting method. Restrictions may apply to flats, listed buildings, conservation areas, balconies, walls and visible installations. Check with your local planning authority and obtain any landlord or freeholder consent before installation.
Do I need an electrician?
A compliant plug-in kit is designed for customer installation in accordance with its instructions. The socket itself must be suitable, correctly protected and professionally installed. Do not modify the household wiring. If there is any doubt about the socket, consumer unit, protective devices or condition of the electrical installation, use a qualified electrician.
Can I Use an Extension Lead, Adaptor or Multiway Socket?
No. The kit should be connected directly to a suitable electrical socket as specified in the UKSOL instructions. Do not use extension leads, adaptors, multiway sockets, smart plugs or other intermediate devices.
Can I install more than one kit?
Do not connect multiple plug-in solar kits or combine systems unless the current rules and the instructions for the exact listed product expressly permit it. UKSOL’s launch solution should be treated as one compliant system per household.
How Heavy Are the Solar Panels?
A solar panel typically weighs around 25kg and can be large and awkward to handle. We recommend two capable adults for safe lifting and positioning, following the manufacturer's handling instructions. Avoid handling or installing panels during high winds.
Electrical and grid questions
What Does the 800VA Limit Mean?
The microinverter limits the system's AC output to a maximum of 800VA. The solar panels may have a higher combined capacity to help maximise generation in varying UK conditions, but the system's AC output will remain limited to 800VA.
Do I Need to Notify My Electricity Network Operator?
Follow the registration or notification process stated in the current rules and the instructions supplied with your kit.
You should follow the current registration or notification requirements for plug-in solar systems. Your Distribution Network Operator (DNO) may require details of your system, so keep the model, serial number and ENA compliance information supplied with your kit.
Will the System Export Electricity?
The solar electricity generated is used within your home first. If the system generates more electricity than your home is using at that time, the surplus may flow back to the grid. Payment for exported electricity is not automatic and will depend on your electricity supplier, meter and export tariff arrangements.
Will Plug-In Solar Work During a Power Cut?
No. For safety, the microinverter will automatically shut down if the mains electricity supply fails. A standard plug-in solar kit does not provide backup electricity during a power cut.
Do I Need a Special Electricity Meter?
No special display is required for the system to generate electricity. However, a smart meter can help monitor electricity imported from and exported to the grid. Check with your electricity supplier regarding meter compatibility and any available export tariffs.
Performance and Monitoring
How Much Could I Save with Plug-In Solar?
Savings will vary depending on system size, location, panel position, shading, weather, electricity prices and how much solar energy you use. Using more of your electricity during daylight hours can help maximise the potential savings from your system.
Will the Solar Panels Produce 800W All Day?
No. Solar output varies throughout the day depending on sunlight, season, weather, panel position, shading and other conditions. The 800VA inverter rating is the system's maximum AC output, not a guaranteed level of continuous generation.
How Do I Monitor Solar Generation?
Compatible UKSOL kits include app-based monitoring through the smart microinverter, allowing you to view your system's performance and solar generation. Simply follow the app and connection instructions supplied with your kit.
Can I Add a Battery?
Only use a battery or energy storage system that is specifically approved for use with your UKSOL kit. Adding unapproved batteries or third-party components could affect the system's safety, compliance and warranty.
Safety and Care
Why Is a Compliant Plug-In Solar Kit Safe?
A compliant plug-in solar kit is designed and assessed to meet the relevant product, electrical and grid-connection requirements. Safe operation also depends on correct installation, secure mounting, suitable ballast and following the manufacturer's instructions. Always use the components supplied or specifically approved for your system.
What Happens in Bad Weather?
The system is designed for outdoor use when correctly mounted and secured in accordance with the manufacturer's instructions. Do not install or move panels during high winds, and always inspect the system after severe weather. Stop using the system if any mounting or components appear damaged or have moved. Follow any wind, snow and exposure limits for the kit.
Can I Walk on the Solar Panels?
No. Never stand, sit or walk on a solar panel. This can damage the glass or internal solar cells, reduce performance and potentially create a safety risk.
How Should I Clean the Solar Panels?
Keep panels clean using the methods recommended by the manufacturer. Do not use abrasive cleaners, harsh chemicals or pressure washers, and avoid cleaning panels when they are hot. Always prioritise safe access and use a competent professional where necessary.
What Should I Do If the Panel, Cable, Plug or Inverter Is Damaged?
Stop using the system immediately and follow the manufacturer's safe shutdown instructions. Do not attempt to open or repair electrical components yourself. If there is smoke, fire or an immediate electrical danger, move away and call 999.
Important Information
These FAQs are provided as general guidance only. Always refer to the manufacturer's instructions, current UK regulations, applicable ENA listing and warranty terms. If you are unsure about any aspect of installation or use, seek appropriate professional advice before connecting the system.
