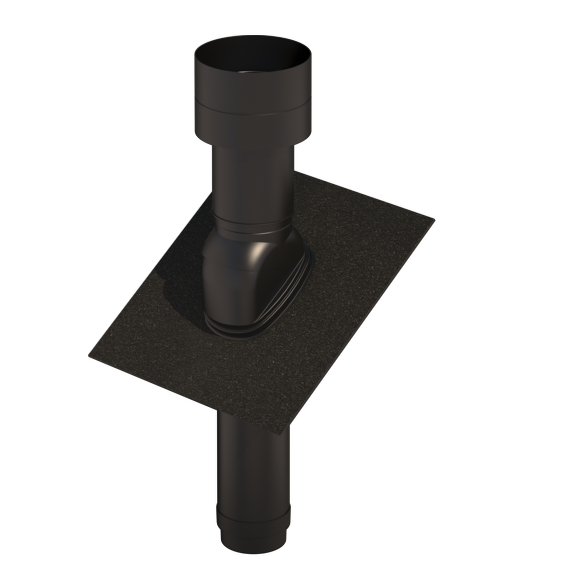

Ubbink UB47 150mm Black is an insulated pitched roof terminal suitable for tiled and slated roofs. Supplied complete with a Ubiflex flashing, this terminal ensures reliable and durable installation on roof pitches between 25° and 45°.

Engineered for mechanical extraction systems, the UB47 features full insulation through the cowl, helping to minimise heat loss and prevent condensation inside or outside the ductwork. This makes it ideal for ventilation, heating, or cooling applications where energy efficiency and long-term performance are essential.

Suitable for tiled and slated roofs.

• For use with roof pitches 25°–45°.
• Insulated through the cowl to reduce condensation risk.
• Easy to install and maintain.
• Manufactured from durable injection-moulded materials with Ubiflex flashing.
• Black finish for a professional appearance.

Technical Details:

• Model: UB47.
• Diameter: 150mm.
• Free vent area: 17,750mm².
• Airflow resistance: <1.0 Pascal at 225m³/h.
• Colour: Black.
• Material: Injection moulded / Vacuum formed with Ubiflex flashing.

Please note: The UB47 is supplied in a larger diameter stack with a reducer included in the box, allowing easy connection to the required size.
