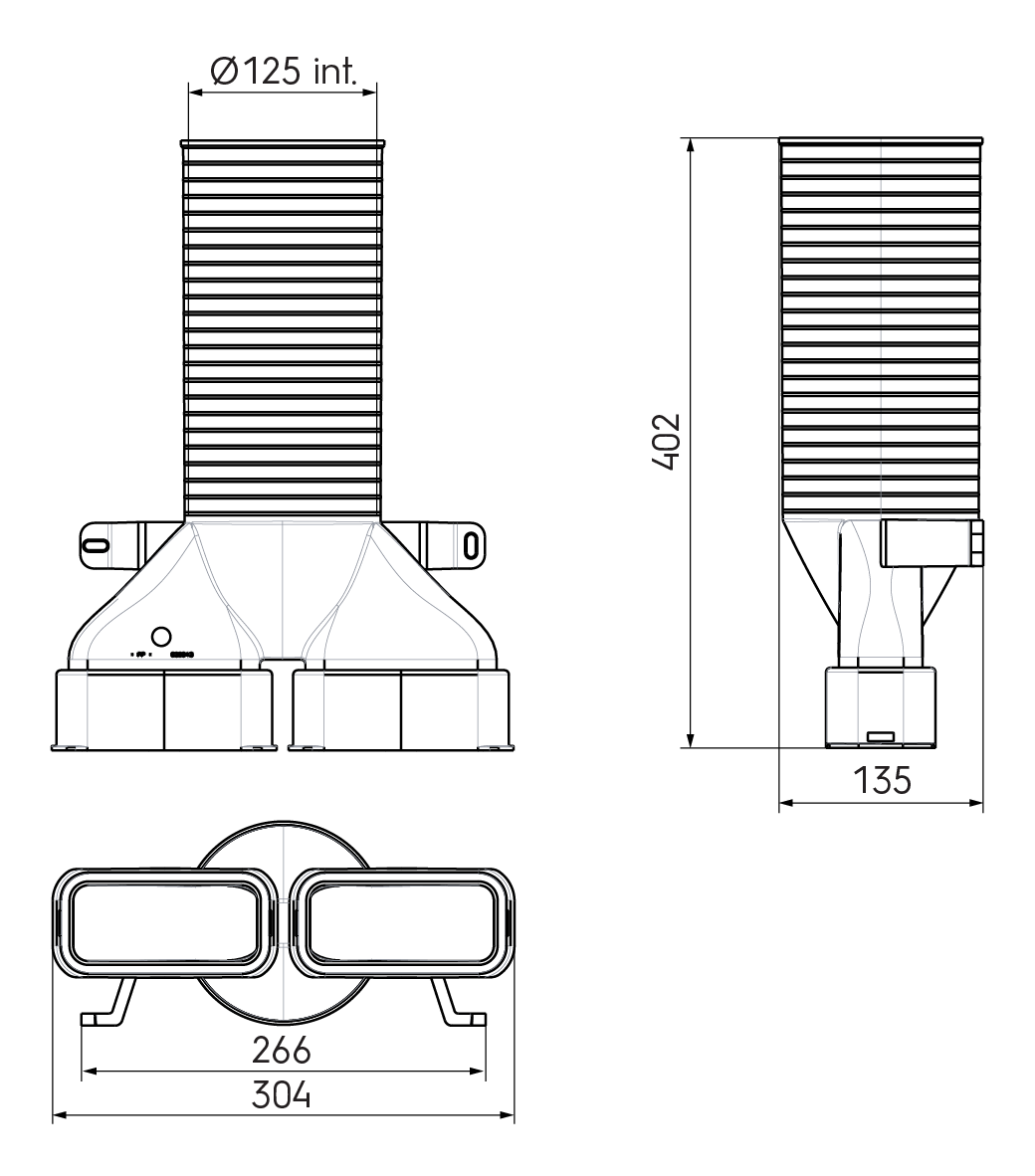

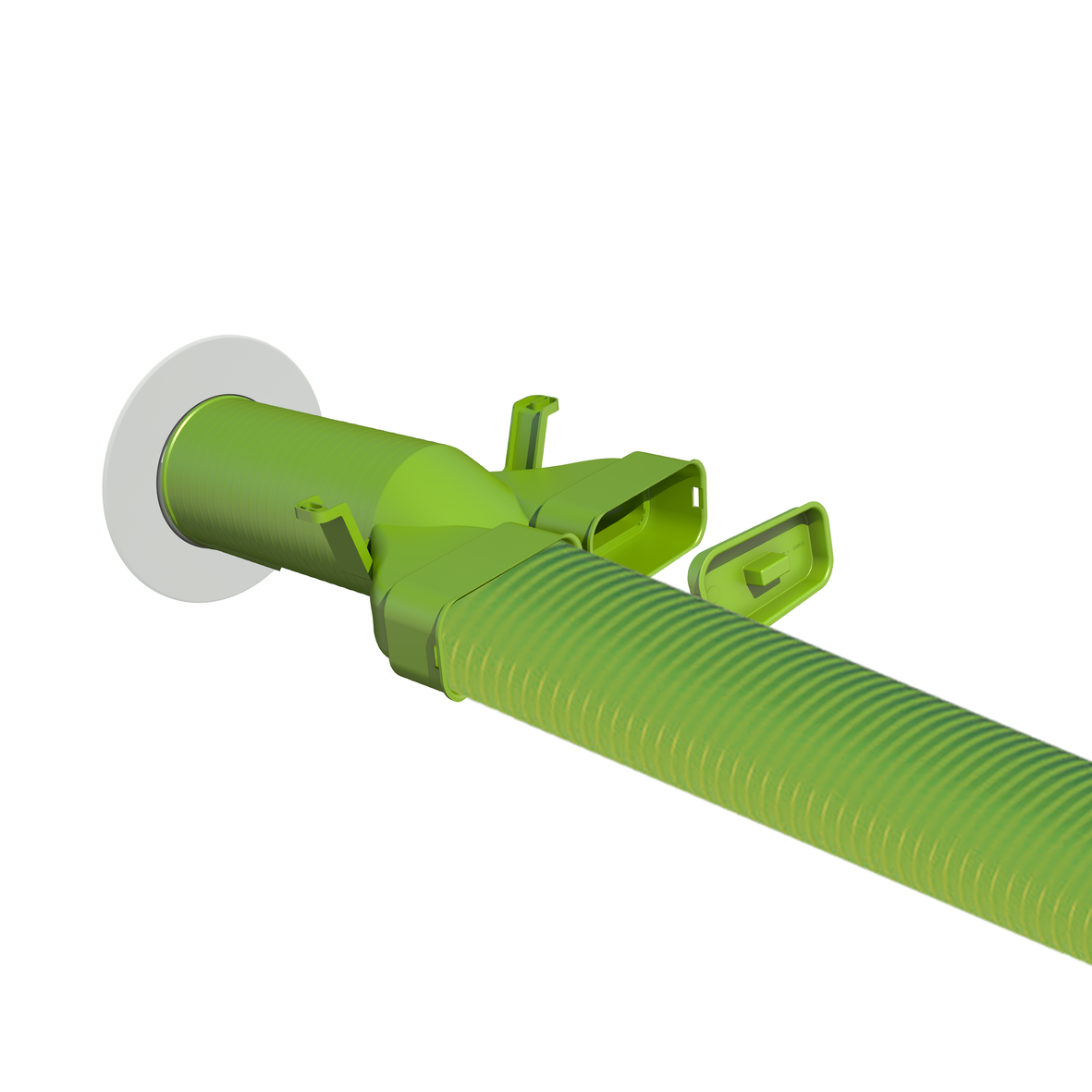

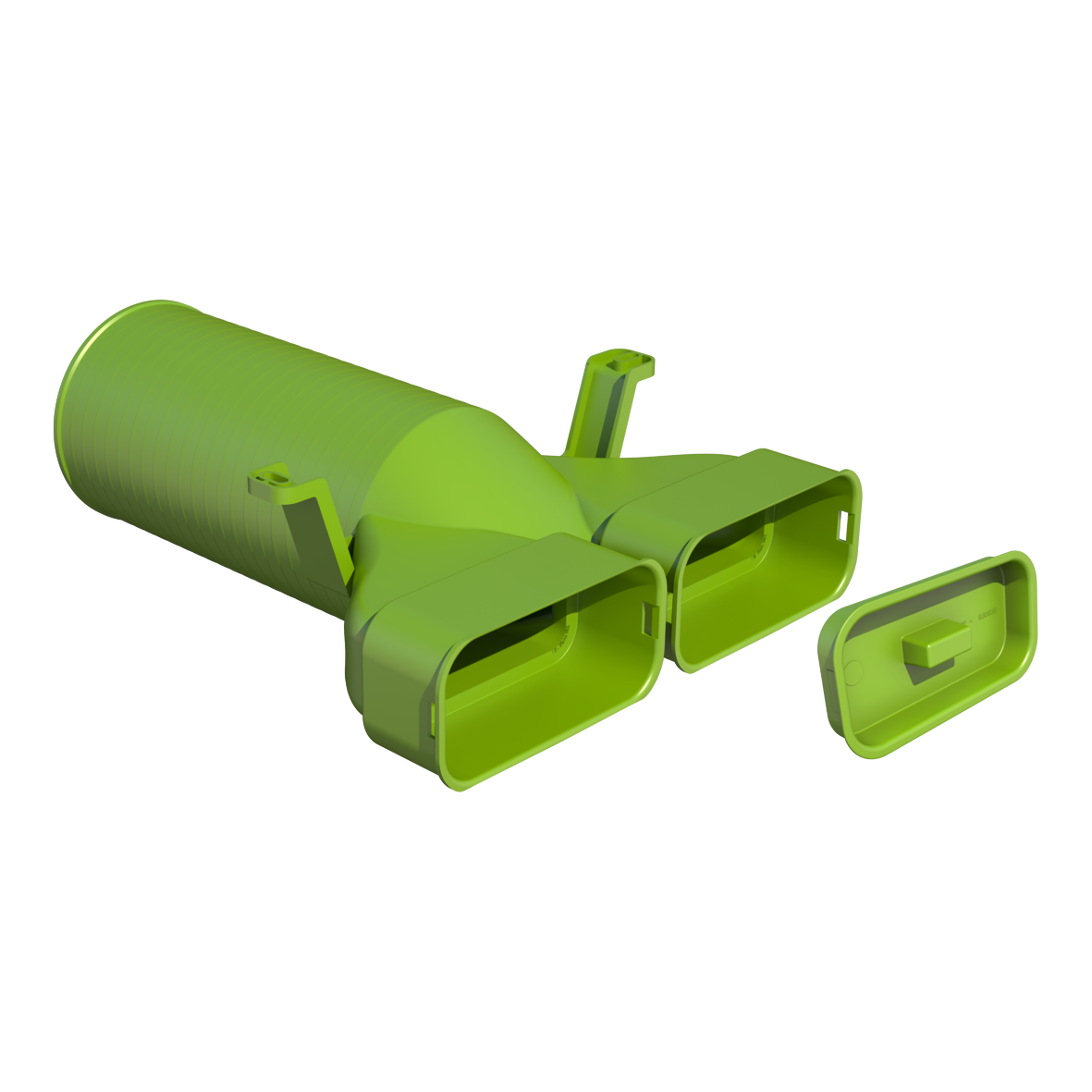

The Ubbink Air Excellent AE55SC Valve Adaptor 125mm 180° is a high-quality duct accessory designed for use within the Ubbink Air Excellent MVHR ventilation system range. Engineered for reliable and airtight connections, this adaptor allows connection of two AE55SC semi-rigid duct runs to a 125mm valve connection in a 180° configuration.

Designed for quick and straightforward installation, the adaptor is compatible with the Ubbink AE55SC ducting system and should be used alongside an AE55SC Seal & Click Ring to create a secure and airtight mechanical connection. The radial ventilation system design helps reduce system pressure loss, improving airflow efficiency whilst minimising fan energy consumption and operational noise levels.

Manufactured from durable plastic materials and tested to high European standards, the Air Excellent range provides dependable long-term performance for residential and commercial MVHR installations.

Key Features & Benefits:

• Suitable for Ubbink Air Excellent AE55SC duct systems.
• 2 x AE55SC duct connections to 125mm valve adaptor.
• 180° configuration for straight-through airflow routing.
• Use with AE55SC Seal & Click Ring for airtight installation.
• Semi-rigid duct system for easy handling and fitting.
• Low pressure loss radial design for efficient airflow.
• Airtight performance rated to ATC2 up to +/- 1000 Pa.
• Helps reduce fan energy use and sound production.
• Compatible with modular manifold systems.
• TÜV SÜD and ISEGA tested and certified.
• REACH compliant construction.

Typical Applications:

• Mechanical Ventilation with Heat Recovery (MVHR) systems.
• Residential ventilation installations.
• New build and refurbishment projects.
• Air distribution and extraction systems.

Technical Information:

• Product Type: Valve Adaptor.
• Duct Compatibility: AE55SC.
• Connection Size: 125mm.
• Configuration: 180°.
• Airtightness Class: ATC2 up to +/- 1000 Pa.
• Installation Method: Mechanical Seal & Click connection system.
