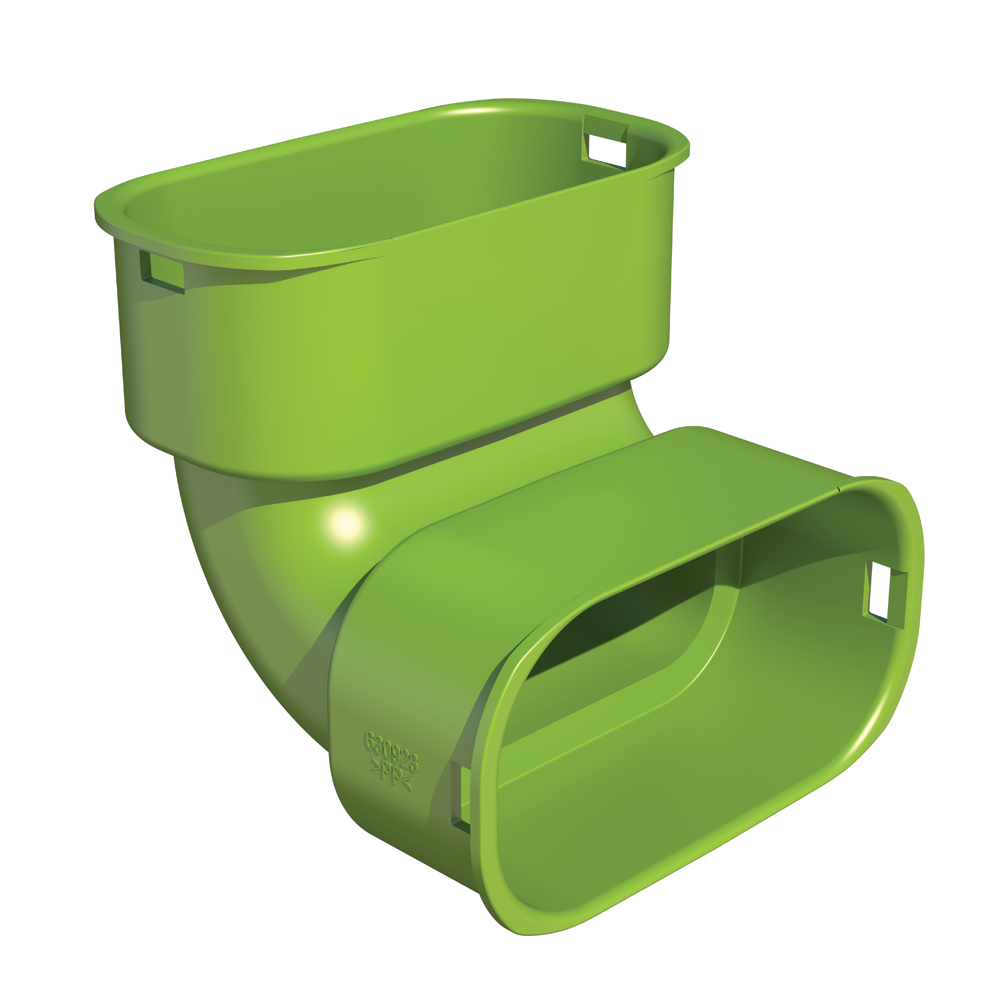

The Ubbink Air Excellent AE35SC Vertical Bend 90° is a Air Excellent duct accessory designed to create a 90-degree vertical change of direction when installing AE35SC ventilation ductwork. Perfect for moving duct runs up or down between levels, this fitting helps keep installations neat, compact, and efficient.

For the correct airtight installation, use 2x AE35SC seal rings and 2x AE35SC click rings to connect the AE35SC ducting to the bend (one set per connection). This produces a secure, airtight mechanical joint without the need for tape or sealant.

Key Features & Benefits

• Designed for Ubbink Air Excellent AE35SC ducting systems.
• Forms a 90° vertical bend for routing ductwork up or down.
• Requires 2x AE35SC seal rings + 2x AE35SC click rings for connection - Not Included.
• Compatible with Air Excellent modular manifolds (usable with all 6 duct types).
• Low system pressure loss thanks to radial design.
• Airtight to class ATC1 up to +/- 1000 Pa, helping minimise fan energy use and sound levels.
• Fast mechanical connections – no tape or sealant required.
• TÜV SÜD and ISEGA tested and certified.
• REACH compliant.

Suitable For

• MVHR and mechanical ventilation installations.
• Vertical duct transitions in floors, walls and service zones.
• New build and refurbishment ventilation systems.

If your duct run needs to go up, down, and stay airtight while doing it, the AE35SC Vertical Bend 90° is the right fitting for the job.
