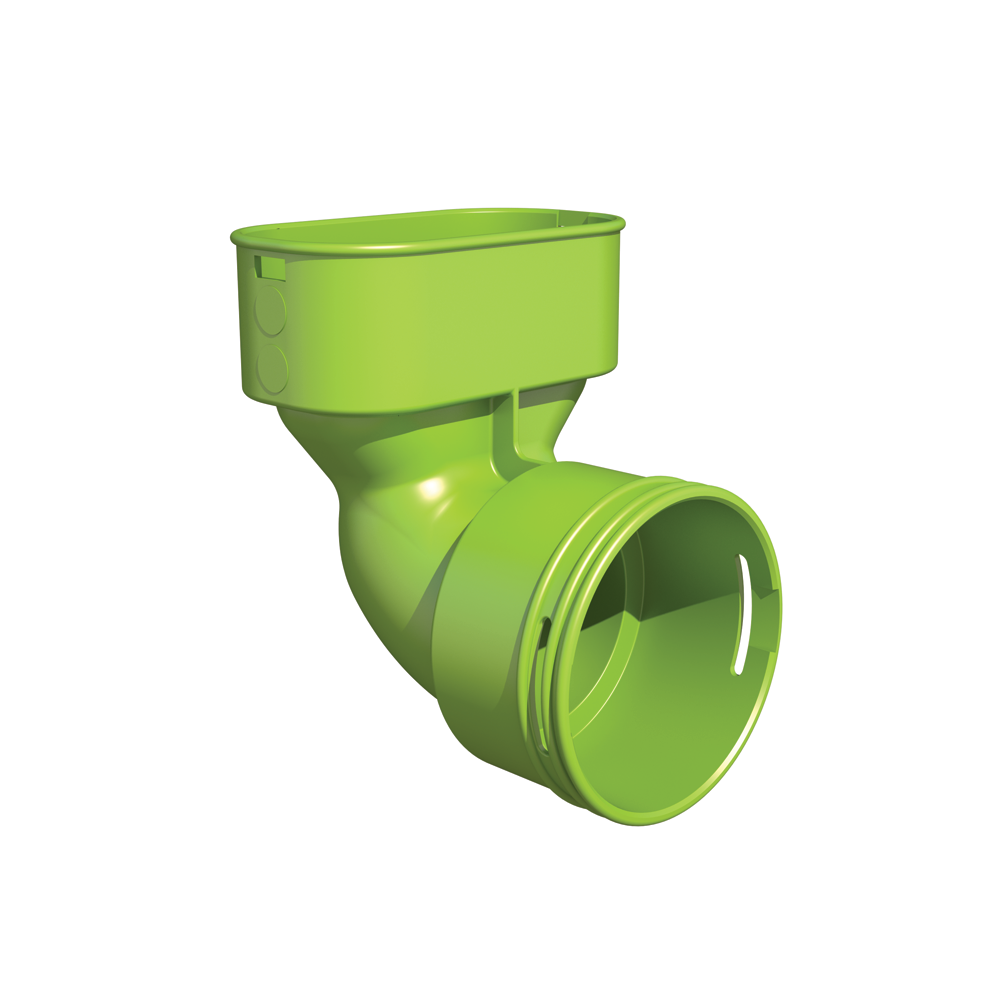

The Ubbink Air Excellent AE34C – AE35SC 90° Adaptor is a dedicated ducting accessory designed to connect an AE34C duct to an AE35SC duct while introducing a controlled 90-degree change in direction. It provides a neat, space-efficient solution for transitioning between duct sizes within the Air Excellent ventilation system.

Engineered for seamless compatibility with Air Excellent modular manifolds and ductwork, this adaptor uses airtight mechanical connections to ensure reliable system performance. Its efficient radial design helps minimise pressure loss, supporting lower fan energy consumption and quieter operation — exactly what’s expected from a properly balanced ventilation system.

When installed with the correct seal and click rings, the adaptor delivers a secure, tape-free connection that’s quick to fit and built to last.

Installation Requirements

• 1 × AE34C seal ring.
• 1 × AE34C click ring.
• 1 × AE35SC seal ring.
• 1 × AE35SC click ring.

Key Features & Benefits

• Connects AE34C ducting to AE35SC ducting.
• Integrated 90° bend for compact, tidy duct routing.
• Compatible with Air Excellent modular manifolds.
• Suitable for semi-rigid plastic ducts on a roll.
• Airtight mechanical connections without tape or sealant.
• Low system pressure loss thanks to efficient radial design.
• Airtightness class ATC1 up to ±1000 Pa.
• Helps minimise fan energy use and sound production.
• TÜV SÜD and ISEGA tested and certified.
• REACH compliant.

A smart adaptor for mixed duct runs — because even modern systems still benefit from doing things properly, neatly, and by the book.
