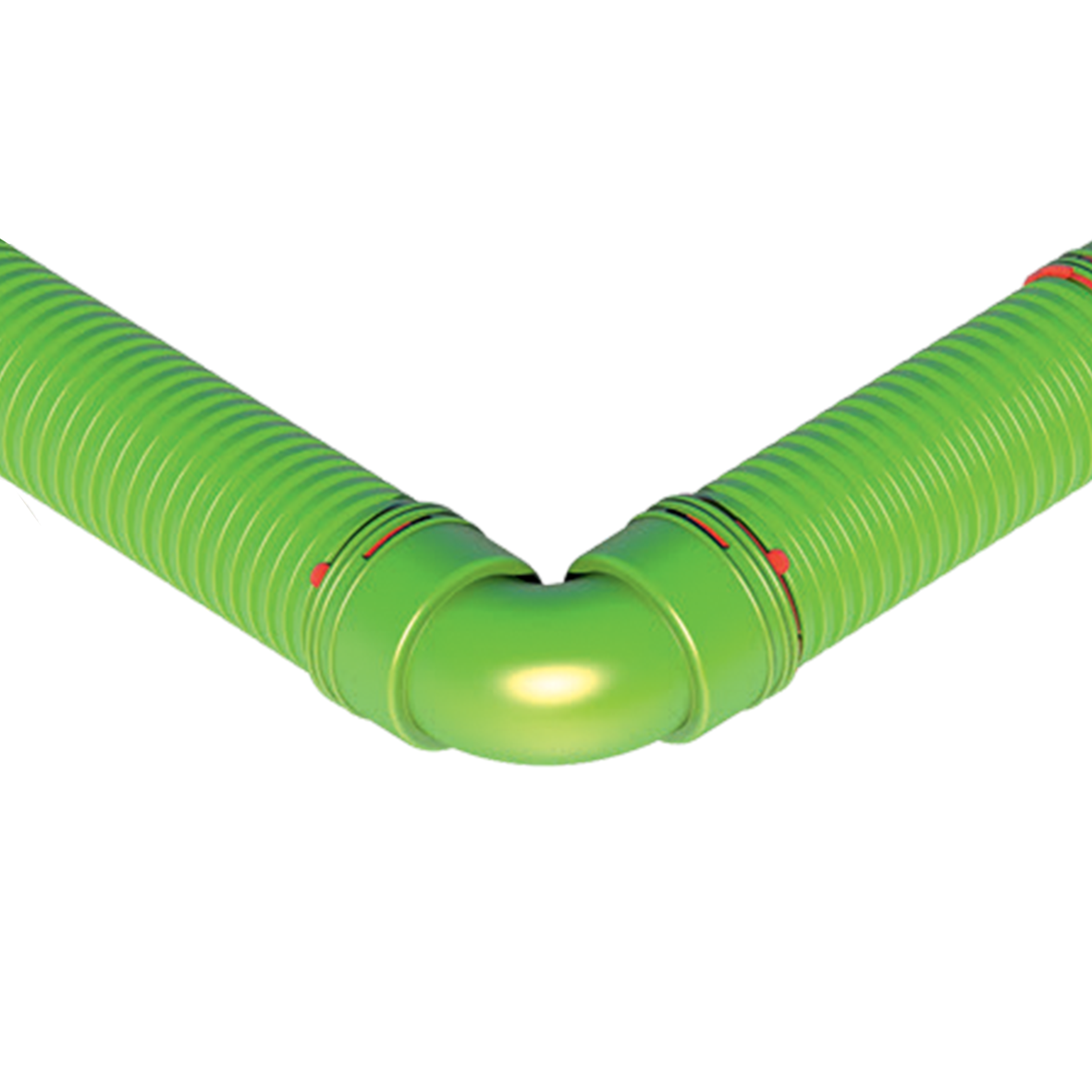

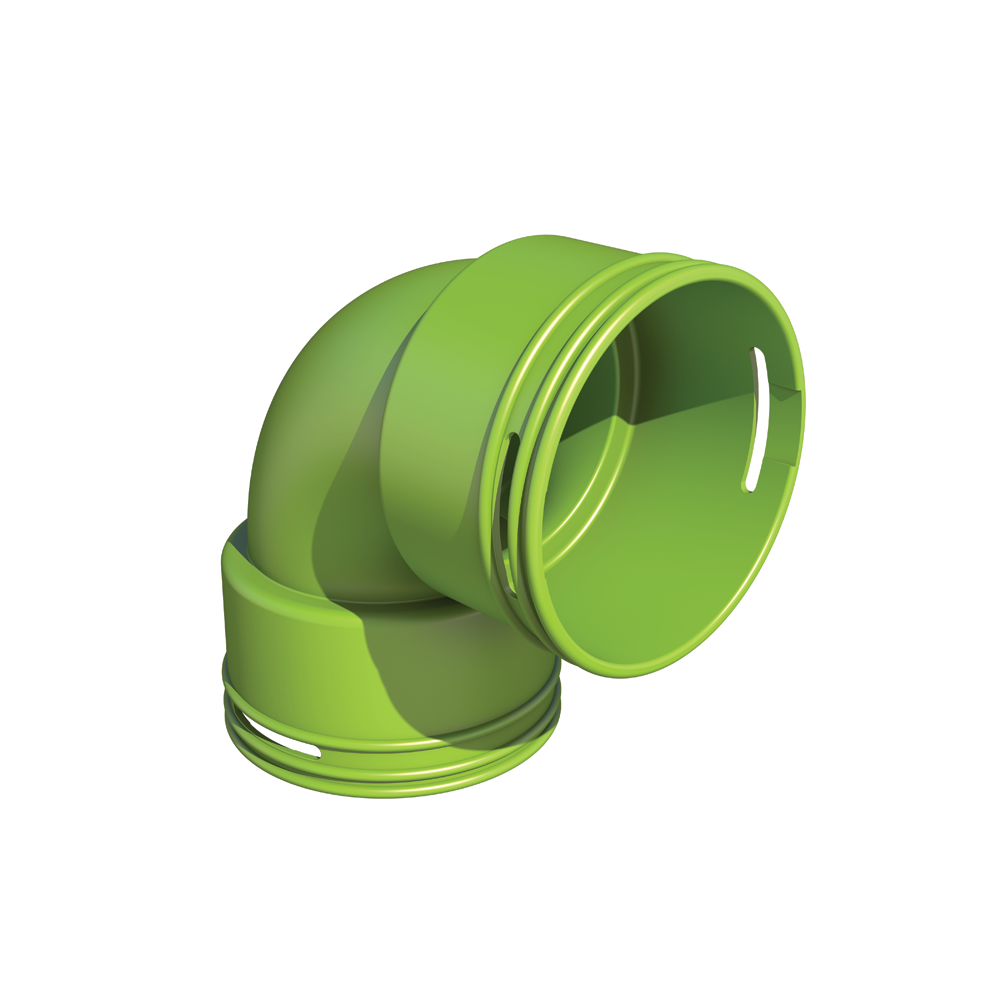

The Ubbink Air Excellent AE34C 90° Bend is a purpose-designed duct accessory used to change direction within AE34C semi-rigid duct runs. It allows a clean, controlled 90-degree turn while maintaining the airflow efficiency and airtight performance expected from the Air Excellent system.

Designed for seamless integration with Air Excellent modular manifolds and ducting, this bend uses secure mechanical connections to deliver a tidy, tape-free installation. When installed using 2 × AE34C seal rings and 2 × AE34C click rings, it ensures a fully airtight joint that helps keep pressure loss to a minimum, reduces fan energy use, and limits sound production.

Ideal for compact layouts and complex routing, the AE34C 90° bend makes directional changes straightforward without compromising system performance — a proper solution, done the right way.

Installation Requirements

• Requires 2 × AE34C seal rings.
• Requires 2 × AE34C click rings.

Key Features & Benefits

• 90° bend for AE34C semi-rigid ventilation ducts.
• Enables clean directional changes in duct runs.
• Compatible with Air Excellent modular manifolds.
• Suitable for semi-rigid plastic ducts on a roll.
• Airtight mechanical connections without tape or sealant.
• Low system pressure loss thanks to efficient radial design.
• Airtightness class ATC1 up to ±1000 Pa.
• Helps minimise fan energy use and sound production.
• TÜV SÜD and ISEGA tested and certified.
• REACH compliant.

A simple, well-engineered bend that keeps airflow smooth and installations tidy — because good ventilation has always been about doing the basics properly.
