Ryno TS2 Flat Roof Pipe Sleeves - 75mm to 125mm - PVC & EPDM
Manufacturer/Brand: Ryno Roofing
SKU:TS2-19.2002-EPDM
10000 in stock
Couldn't load pickup availability
Ryno TS2 Flat Roof Pipe Sleeves pipe sleeves are crafted with precision and come in two high-quality variants: EPDM, ideal for EPDM Membrane, Felt & Asphalt roof coverings, and PVC, designed for PVC Roofing Membranes. We offer versatility to cater to your specific roofing needs.
Ryno TS2 pipe sleeves are engineered to accommodate a wide range of diameters, ranging from 75mm to 125mm. No matter the size of your roof penetrations, Ryno TS2 sleeves are up to the task.
Sleeve Dimensions:
- F1: 365MM.
- H: 180MM.
- D1: 127MM.
- A: 75MM.
- B: 80MM.
- C: 90MM.
- D: 100MM.
- E: 110MM.
- F: 115MM.
- G: 125MM.

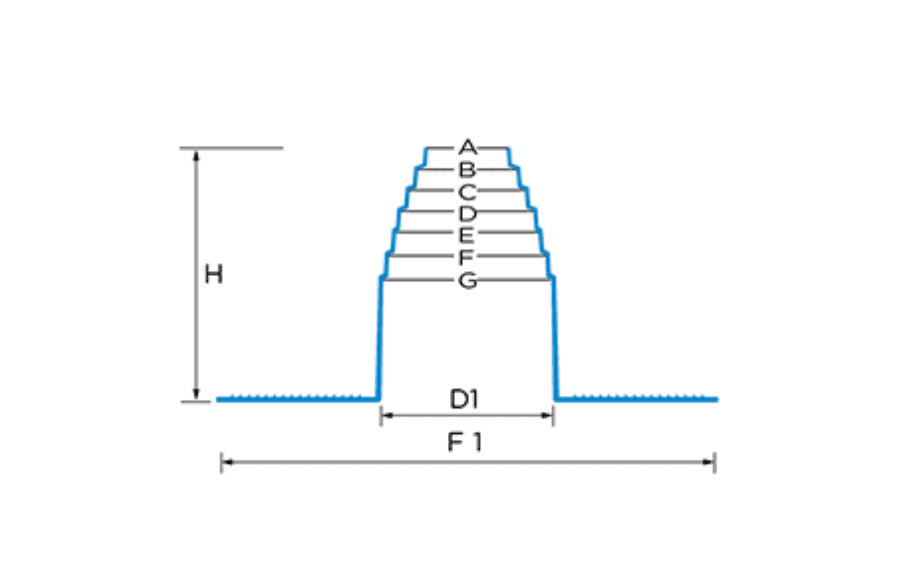

For a visual reference, Please refer to the dimensions diagram in the images.
Sold as one pipe collar as selected.
Additional Information for Ryno TS2 Flat Roof Pipe Sleeves - 75mm to 125mm - PVC & EPDM
Technical Information
Delivery Information
Delivery Information
The Ryno Pipe Collars are delivered direct to your chosen location typically in 1 -3 workings days.
We strongly recommend refraining from booking, scheduling, or commencing any works until you've received your complete materials order. Your satisfaction and seamless project execution are our top priorities.
FAQ's
Exceptional Material Choices: Our pipe sleeves are crafted with precision and come in two high-quality variants: EPDM, ideal for EPDM Membrane, Felt & Asphalt roof coverings, and PVC, designed for PVC Roofing Membranes. We offer versatility to cater to your specific roofing needs.

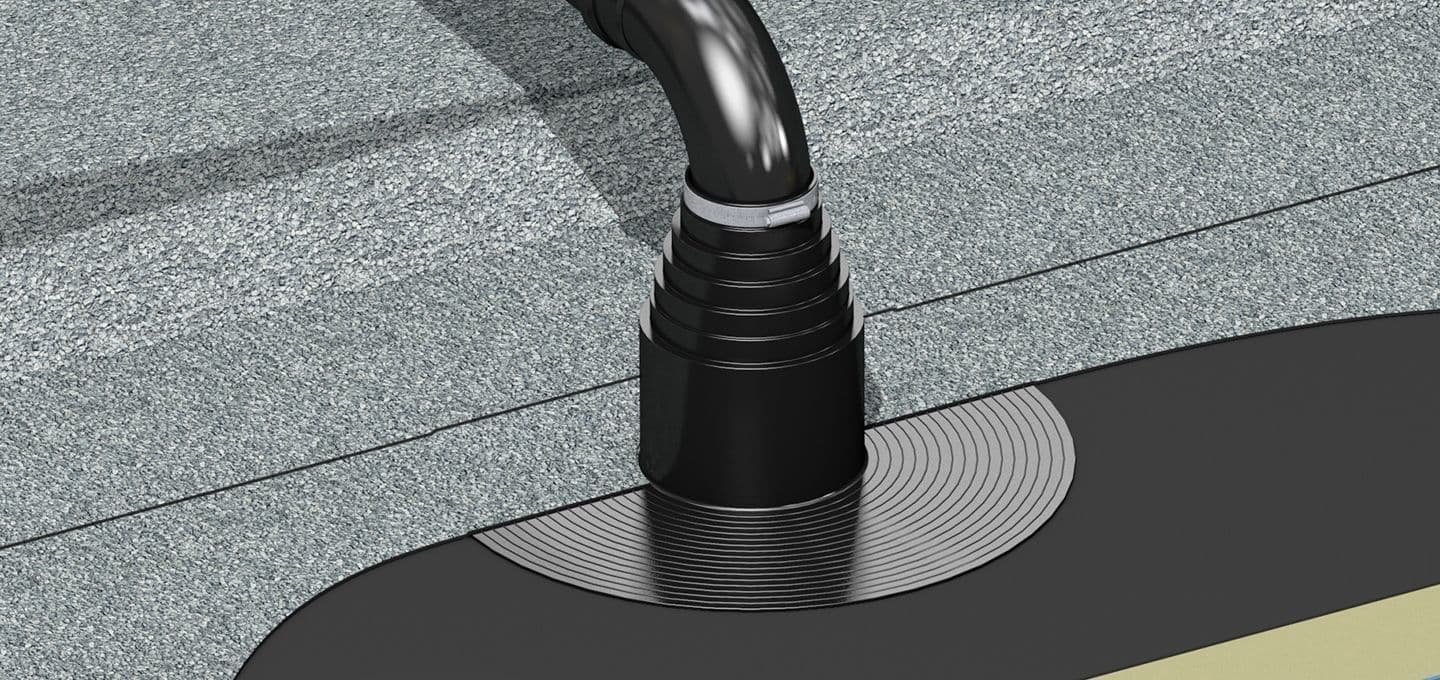

Effortless Installation: Simplicity meets efficiency! Installing Ryno pipe sleeves is a breeze. Secure them in place using appropriate fixings for your substrate, then seamlessly install your roof waterproofing layers over the circular base flange. The finishing touch involves tightening the robust metal fastening device around the top of the sleeve for an impeccable weatherproof seal. If desired, a touch of sealant can be applied to further enhance the security.
Versatile Sizing: Our pipe sleeves are engineered to accommodate a wide range of diameters, ranging from 75mm to 125mm. No matter the size of your roof penetrations, Ryno TS2 sleeves are up to the task.
