Ryno TS1 Flat Roof Pipe Sleeves - 34mm to 90mm - PVC & EPDM

Skip to product information
1 of 4

Manufacturer/Brand: Ryno Roofing

SKU:TS1-19.2001-PVC

Regular price £21.60 GBP
Regular price £25.20 GBP Sale price £21.60 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

10000 in stock

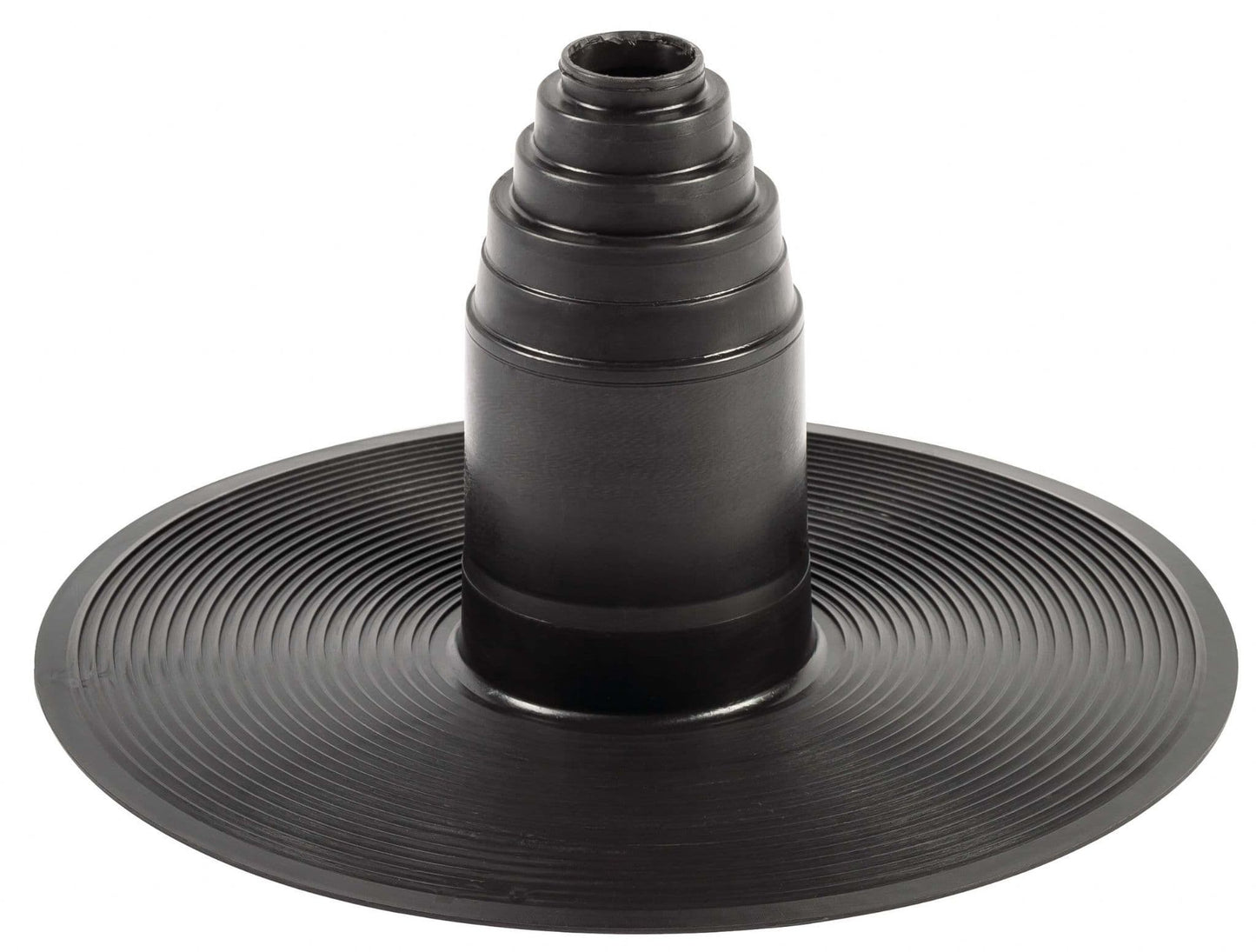

Ryno TS1 Flat Roof Pipe Sleeves.

Ryno TS1 pipe sleeves are designed to accommodate a range of diameters, from 34mm to 90mm. No matter the size of your roof penetrations, Ryno TS1 sleeves are up to the task.

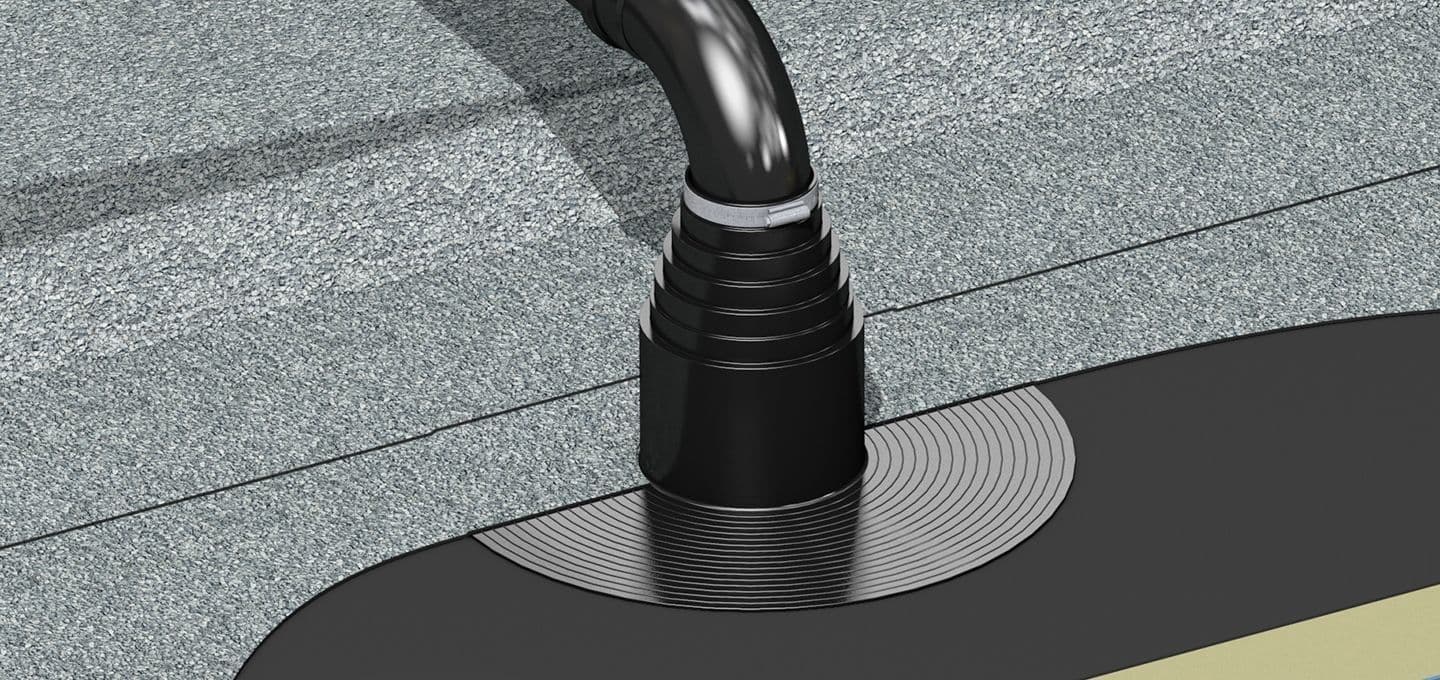

Pipe sleeves are used where pipework passes through the roof structure. They are a simple and effective means of bonding the pipe to the membrane. The roofing membrane is dressed over the circular flange of the pipe sleeve. A robust metal fastening device is then tightened over the pipe sleeve, forming a watertight junction.

Manufactured with precision, these Ryno pipe sleeves come in two variants: EPDM for EPDM Membrane, Felt & Asphalt roof coverings, and PVC for PVC Roofing Membranes.

Ryno TS2 is also to suit larger pipe diameters.

Sleeve Dimensions:

  • F1: 340MM
  • H: 180MM
  • D1: 93MM
  • A: 34MM
  • B: 50MM
  • C: 60MM
  • D: 75MM
  • E: 80MM
  • F: 90MM

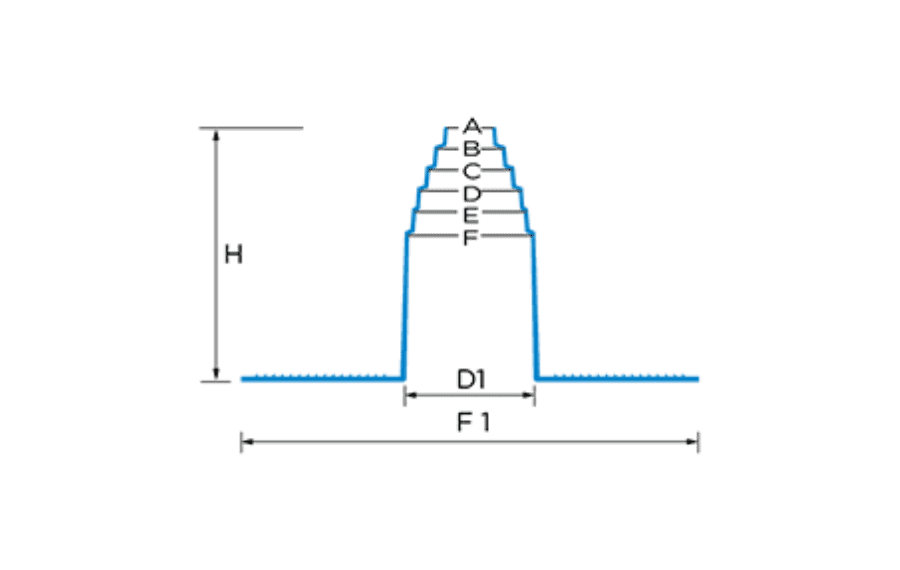

Check out our dimensions diagram in the images for a visual reference.

Sold as one pipe sleeve.

View full details

Additional Information for Ryno TS1 Flat Roof Pipe Sleeves - 34mm to 90mm - PVC & EPDM

Technical Information

Delivery Information

Delivery Information

The Ryno pipe collars are delivered direct to your chosen location typically in 1 -3 workings days.

We strongly recommend refraining from booking, scheduling, or commencing any works until you've received your complete materials order. Your satisfaction and seamless project execution are our top priorities.

FAQ's

Exceptional Material Choices: Crafted with precision, our pipe sleeves come in two variants: EPDM for EPDM Membrane, Felt & Asphalt roof coverings, and PVC for PVC Roofing Membranes. We ensure that your specific roofing needs are met, offering you the utmost flexibility.

Effortless Installation: Simplicity is key! Installing Ryno pipe sleeves is a breeze. Secure them in place using suitable fixings for your substrate, then lay your roof waterproofing layers over the circular base flange. To ensure a watertight seal, tighten the robust metal fastening device around the top of the sleeve. If desired, a touch of sealant can be applied for added security.

Versatile Sizing: Our pipe sleeves are designed to accommodate a range of diameters, from 34mm to 90mm. No matter the size of your roof penetrations, Ryno TS1 sleeves are up to the task.
