Ryno TPM-150 Mechanical Fix Flange Outlet - 150MM Diameter
Manufacturer/Brand: Ryno Roofing
SKU:TPM-150 - 19.1023
10000 in stock

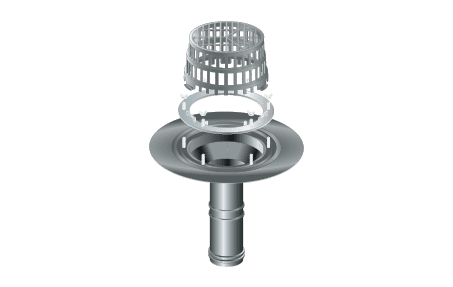

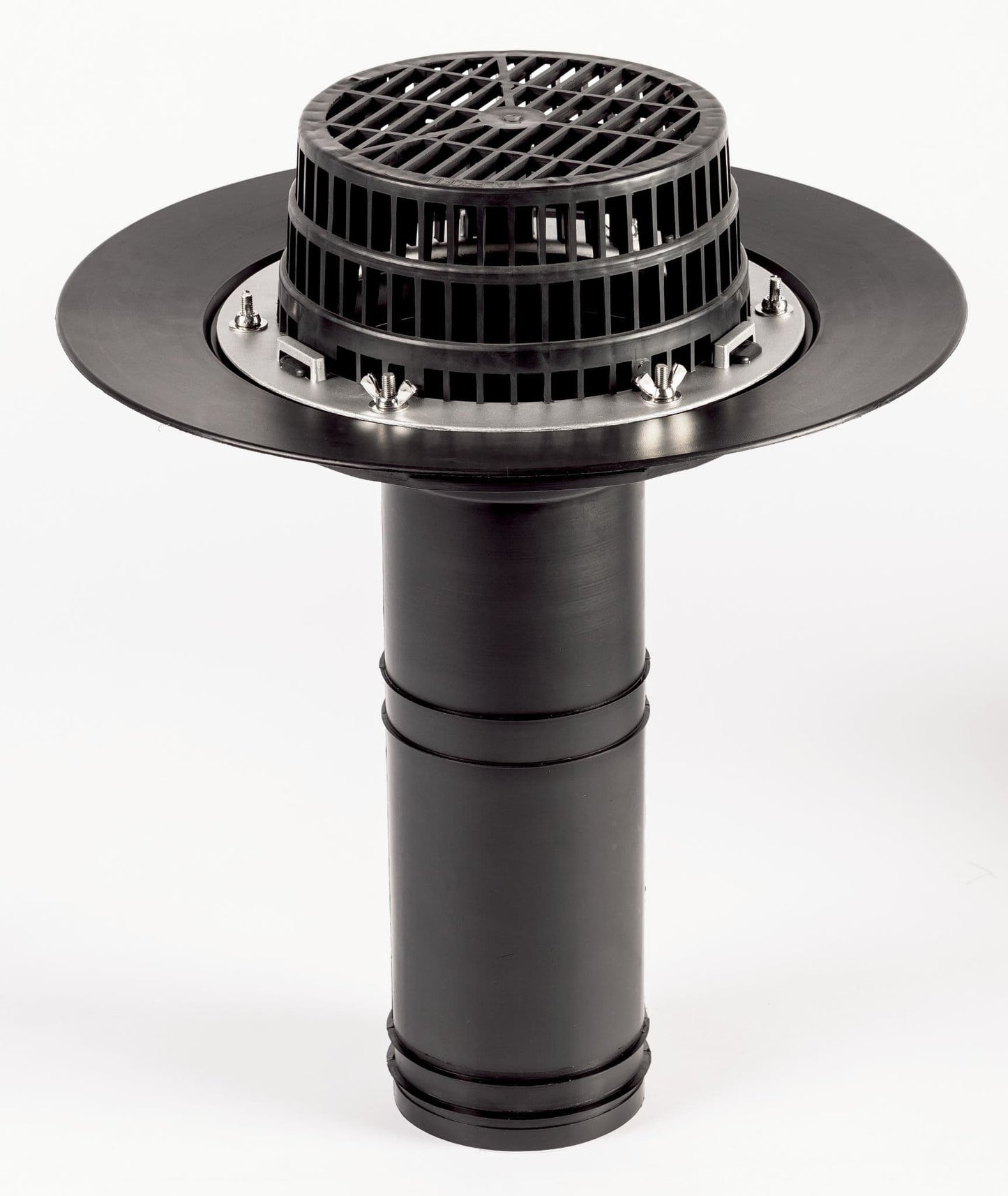

Ryno TPM-150 Mechanical Fix Flange Outlet.
The Ryno TPM-150 Mechanical Fix Flange outlet features an advanced clamping ring that plays a crucial role in securing the waterproofing layer, forming an unyielding and leakproof seal between the roofing membrane and the rainwater outlet. This feature is particularly advantageous when installing single-ply membranes.
Manufactured from thermoplastic, this outlet boasts outstanding durability, making it suitable for use in all atmospheric conditions. Its remarkable flexibility, even in low temperatures, ensures consistent performance.
Suitable for a variety of membrane roofing applications.
Product Benefits:
- Creates a secure, leakproof seal between roofing membrane and rainwater outlet.
- Highly durable, designed to withstand all atmospheric conditions.
- Maintains flexibility even at low temperatures.

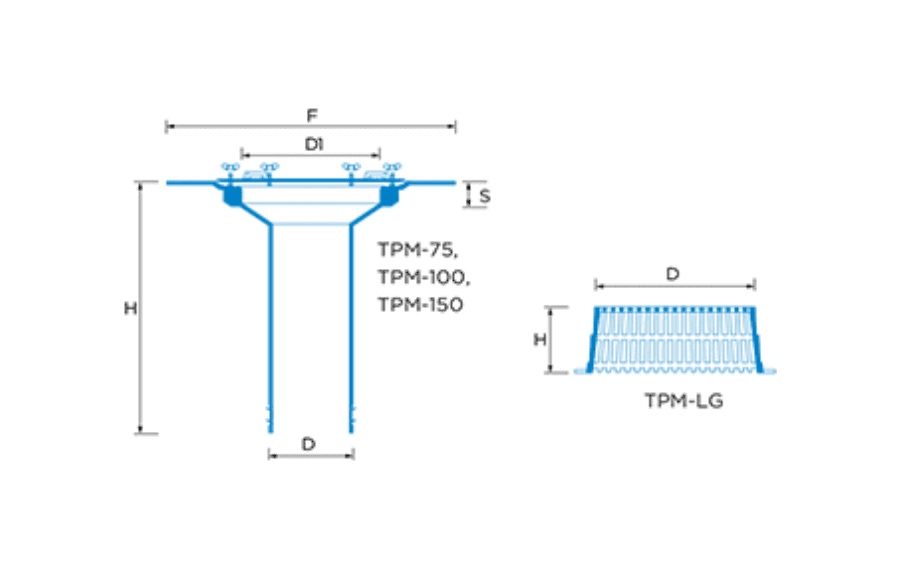

Outlet Dimensions:
- Flange Diameter (F): 340mm
- Spigot Length including sump (H): 330mm
- Spigot Diameter (D): 150mm
- Sump Diameter (D1): 170mm
- Sump Depth (S): 30mm
Sold as one single roof outlet. Leafguard is not included but can be purchased separately.
Additional Information for Ryno TPM-150 Mechanical Fix Flange Outlet - 150MM Diameter
Technical Information
Delivery Information
The Ryno Outlets are delivered direct to your chosen location typically in 1 -3 workings days.
We strongly recommend refraining from booking, scheduling, or commencing any works until you've received your complete materials order. Your satisfaction and seamless project execution are our top priorities.
FAQ's
Clamping Ring: This outlet features an advanced clamping ring that plays a crucial role in securing the waterproofing layer, forming an unyielding and leakproof seal between the roofing membrane and the rainwater outlet. This feature is particularly advantageous when installing single-ply membranes.

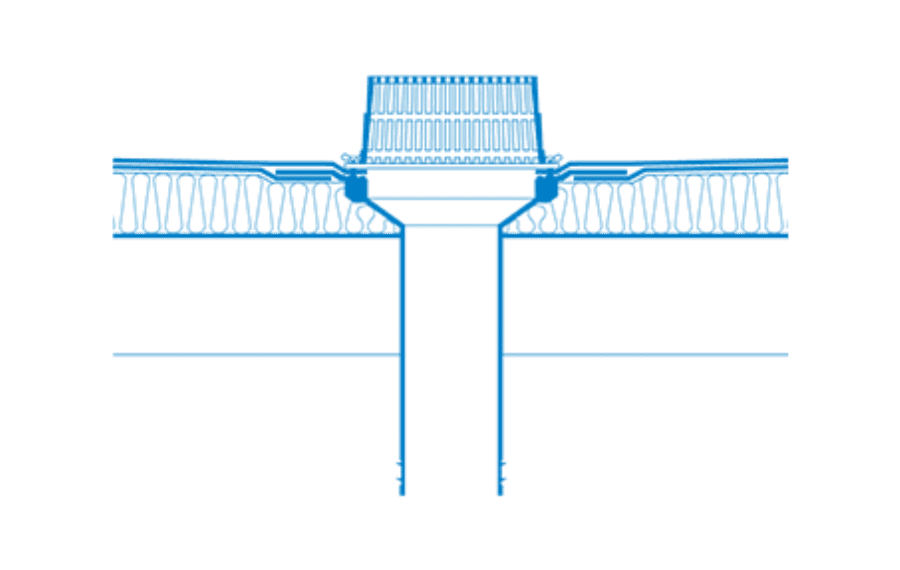

Effortless Installation: Installing the roofing membrane is a straightforward process. Simply drape it over the outlet flange, trim it to fit the outlet mouth, and then securely fasten it using the clamping ring. The clamping ring engages over threaded clips onto stainless steel studs, ensuring a secure and reliable seal. For added functionality, you have the option to purchase a leaf guard separately, which easily clips onto the clamping ring.
Exceptional Durability: Crafted from thermoplastic, this outlet boasts outstanding durability, making it suitable for use in all atmospheric conditions. Its remarkable flexibility, even in low temperatures, ensures consistent performance.
Variety of Sizes: Choose from three standard sizes to meet the specific requirements of your project.
Experience the benefits of the Ryno TPM-150 Mechanical Fix Flange Outlet:
- Creates a secure, leakproof seal between roofing membrane and rainwater outlet.
- Highly durable, designed to withstand all atmospheric conditions.
- Maintains flexibility even at low temperatures.
For added functionality, explore our leaf guard and gravel grate options. Elevate your roofing project with the Ryno TPM-150, your assurance of superior sealing and durability.
