Ryno TPM-100 Mechanical Fix Flange Outlet - 100MM Diameter

Skip to product information
1 of 5

Manufacturer/Brand: Ryno Roofing

SKU:TPM-100 - 19.1022

Regular price £79.95 GBP
Regular price £86.50 GBP Sale price £79.95 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

10000 in stock

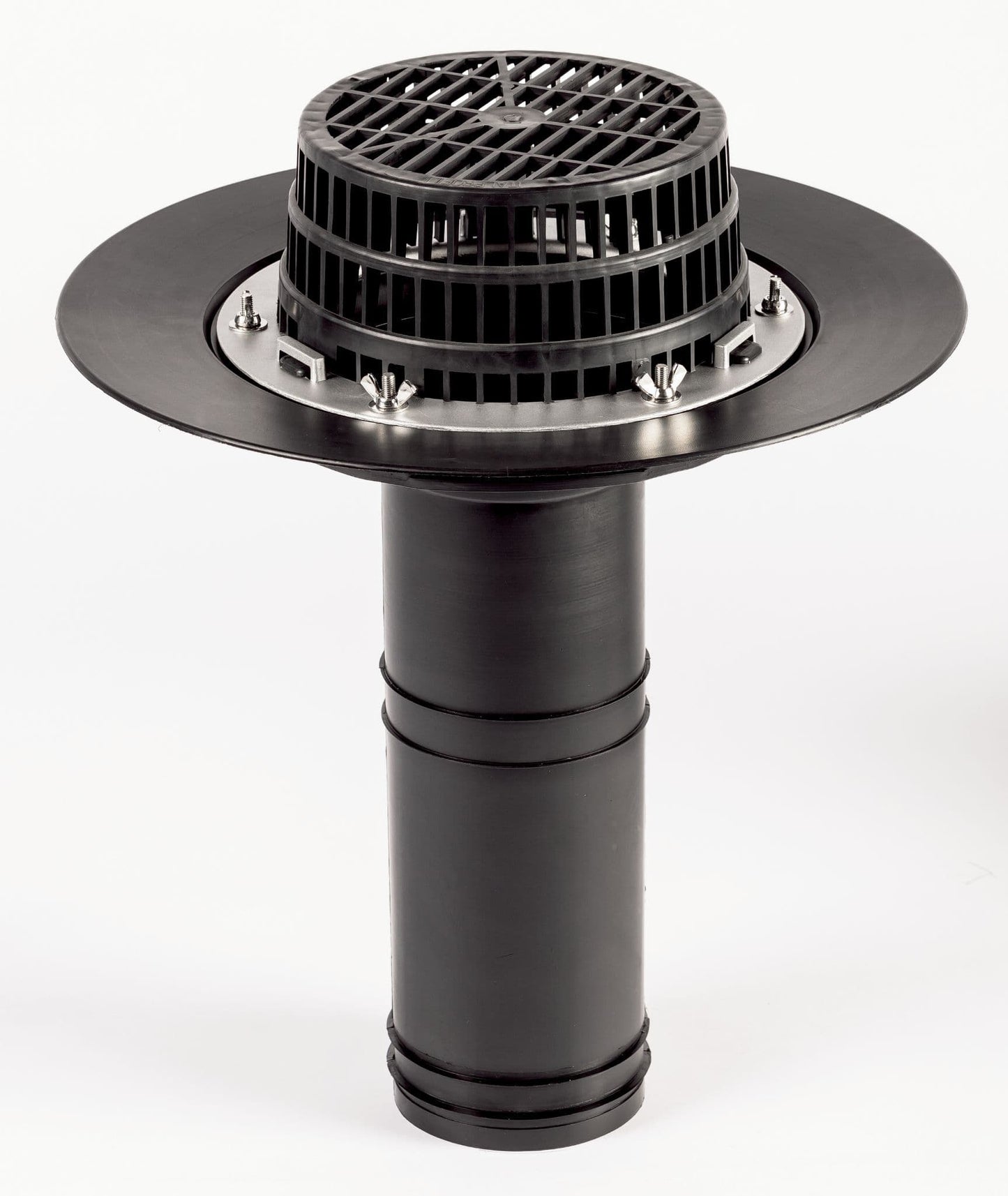

Ryno TPM-100 Mechanical Fix Flange Outlet.

The Ryno Mechanical Fix Flange Outlet is equipped with an innovative clamping ring that plays a pivotal role in securing the waterproofing layer, creating a secure and leakproof seal between the roofing membrane and the rainwater outlet. This feature makes the TPM-100 an excellent choice, particularly when installing single-ply membranes.

Suitable for a variety of membrane roof systems.

Product Benefits:

  • Creates a secure, leakproof seal between roofing membrane and rainwater outlet.
  • Highly durable, designed to withstand all atmospheric conditions.
  • Maintains flexibility even at low temperatures.

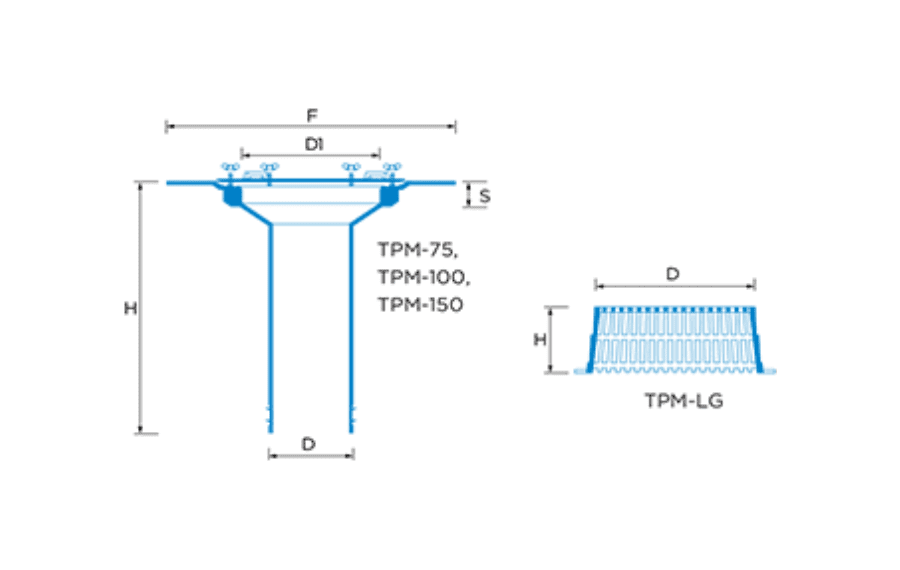

Outlet Dimensions:

  • Flange Diameter (F): 340mm
  • Spigot Length including sump (H): 330mm
  • Spigot Diameter (D): 100mm
  • Sump Diameter (D1): 170mm
  • Sump Depth (S): 30mm

Sold as one single roof outlet. Leafguard is not included but can be purchased separately.

View full details

Additional Information for Ryno TPM-100 Mechanical Fix Flange Outlet - 100MM Diameter

Technical Information

Delivery Information

The Ryno Outlets are delivered direct to your chosen location typically in 1 -3 workings days.

We strongly recommend refraining from booking, scheduling, or commencing any works until you've received your complete materials order. Your satisfaction and seamless project execution are our top priorities.

FAQ's

This outlet is equipped with an innovative clamping ring that plays a pivotal role in securing the waterproofing layer, creating a secure and leakproof seal between the roofing membrane and the rainwater outlet. This feature makes the TPM-100 an excellent choice, particularly when installing single-ply membranes.

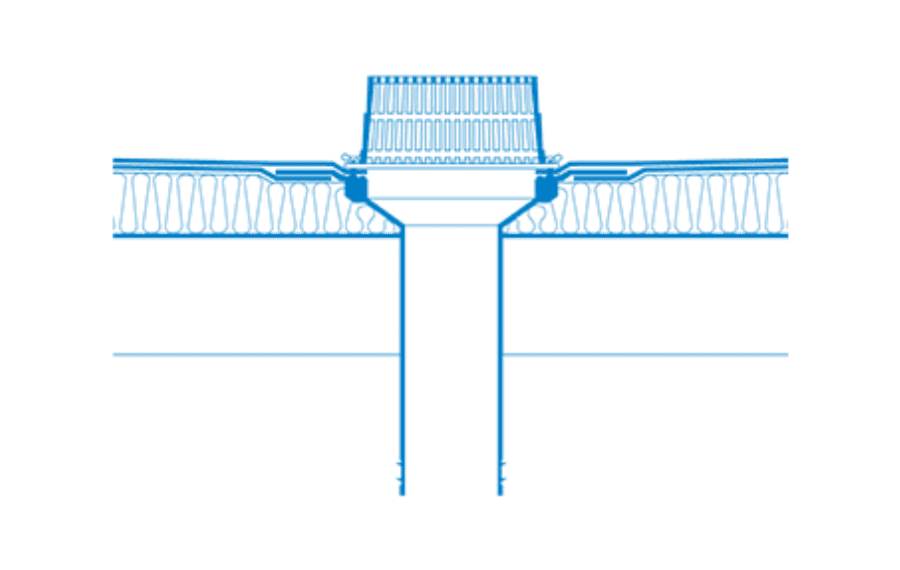

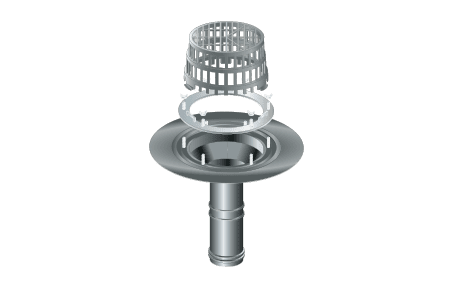

Installing the roofing membrane is a straightforward process. Simply drape it over the outlet flange, trim it to fit the outlet mouth, and then securely fasten it using the clamping ring. The clamping ring engages over threaded clips onto stainless steel studs, ensuring a steadfast seal. For added functionality, you have the option to purchase a leaf guard separately, which easily clips onto the clamping ring.

Crafted from thermoplastic, this outlet boasts outstanding durability, making it suitable for use in all atmospheric conditions. Its remarkable flexibility even in low temperatures ensures year-round reliability.

Choose from three standard sizes to meet the specific requirements of your project.

Experience the benefits of the Ryno TPM-100 Mechanical Fix Flange Outlet:

  • Creates a secure, leakproof seal between roofing membrane and rainwater outlet.
  • Highly durable, designed to withstand all atmospheric conditions.
  • Maintains flexibility even at low temperatures.
