Versatile Application: These outlets are purpose-designed for use at the intersection of two surfaces, making them ideal for areas where a roof or balcony meets a parapet wall. They offer the flexibility to be installed for either vertical or horizontal water take-off.

Material Durability: Crafted from PVC, these outlets are tailored for use with PVC Single Membrane Roof Systems. They are suitable for various flat roof types, including flat roof areas, terraces, balconies, parapet gutters, and valleys.

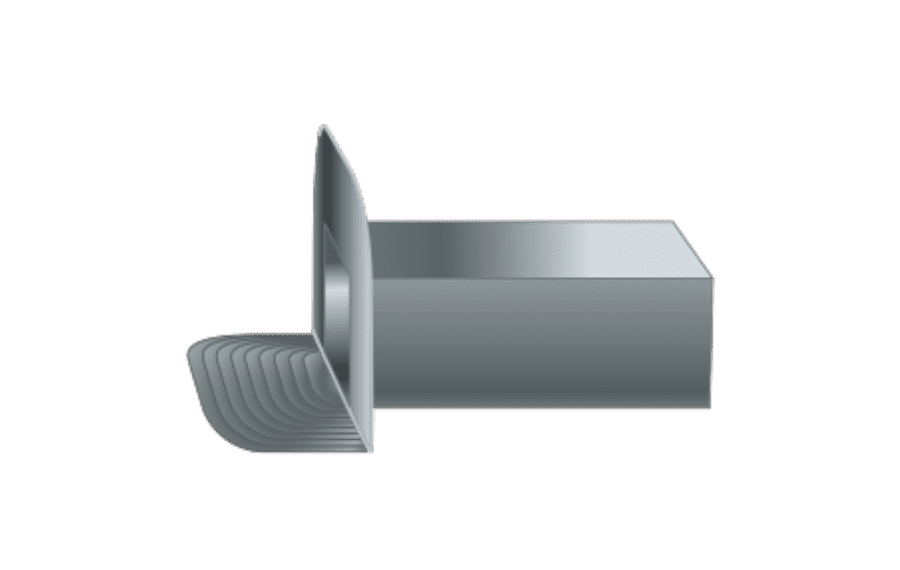

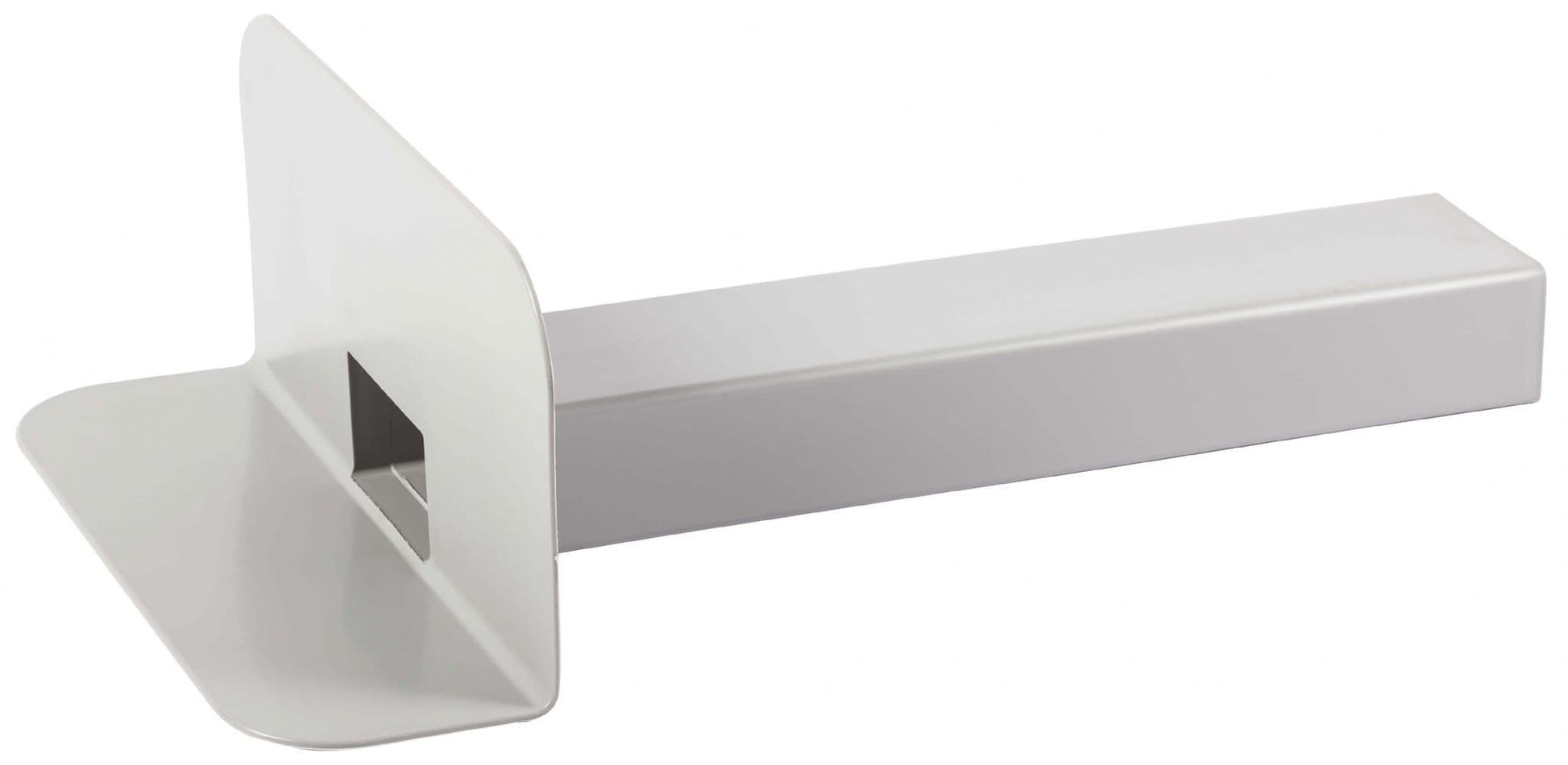

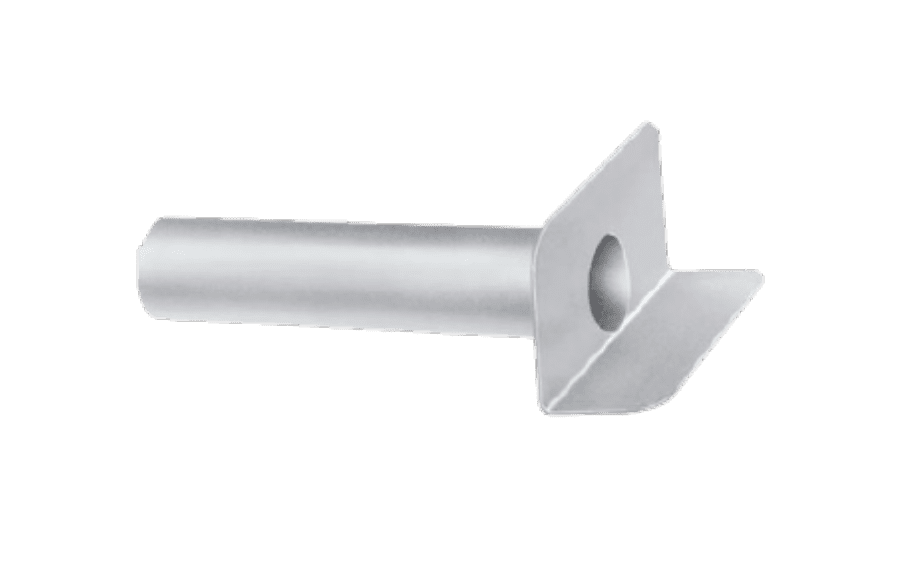

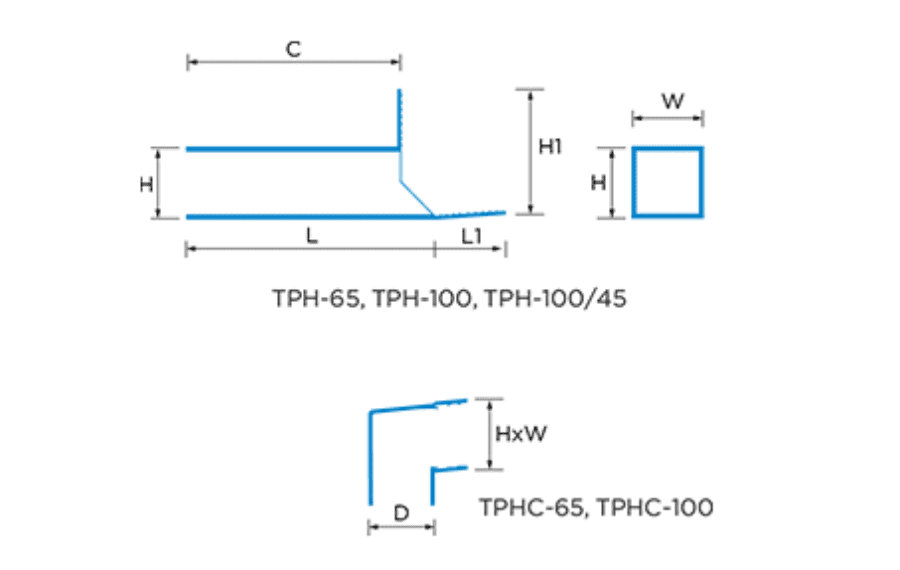

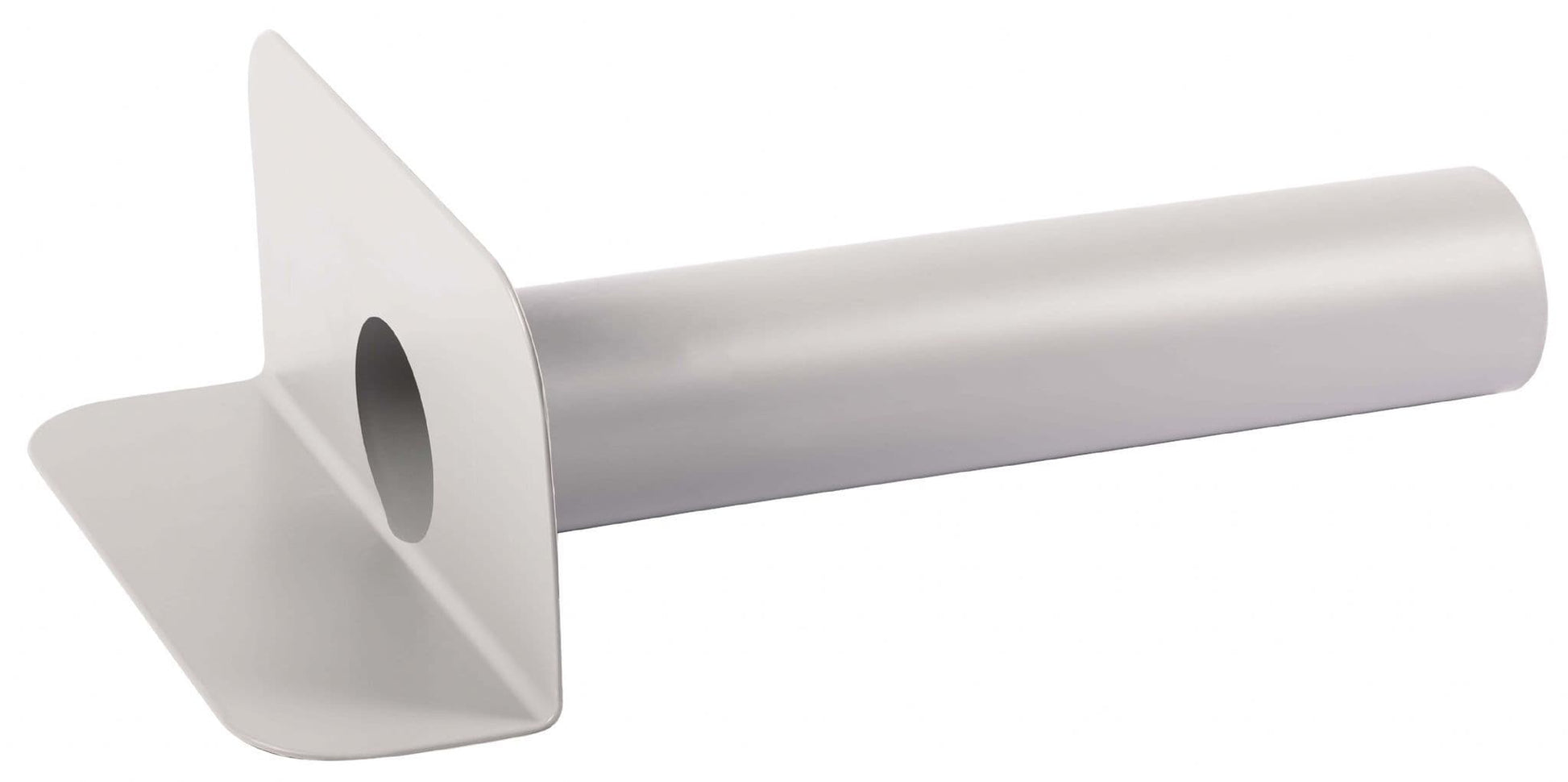

Spigot Options: You have the choice of two different spigot shapes, circular or square, and can select from four different spigot sizes to match your specific requirements. Each outlet features a rectangular-shaped flange, serving as both a secure mounting point and a surface for applying waterproof coatings. These flanges are meticulously designed to accommodate both the vertical upstand and the horizontal deck substrate at a 90-degree opposing angle (see images).

Additional Accessories: To enhance functionality, we offer a range of Leaf Guards, Gravel Guards, and angled connectors. These accessories enable you to seamlessly connect the outlets to square or round downpipes, providing comprehensive solutions for your drainage needs. These accessories are available for separate purchase.

Easy Installation: Installing our Horizontal Drainage Outlets is straightforward and efficient. Secure them using suitable nails or screws through the flange on both the vertical and horizontal surfaces. Apply waterproof coatings to the flange, and create a hole around the spigot entry point to facilitate water drainage. You can leave the exit spigot as is for natural water runoff or connect it directly to a downpipe using our range of connectors.

Outlet Benefits:

Available in PVC for PVC membrane applications, EPDM for felt or asphalt applications, and PP for TPO membranes.

Compatible with all forms of flat roofs.

Optional leaf guards and gravel grates are available for added convenience.

Elevate your flat roof's drainage efficiency with the Ryno PVC Flat Roof Horizontal Drainage Outlet, designed for durability, versatility, and straightforward installation. Explore our range of options to find the perfect fit for your roofing project.
