Ryno Flat Flange Outlet Leaf Guard
Manufacturer/Brand: Ryno Roofing
SKU:19.1010/19.1012
10000 in stock
Couldn't load pickup availability

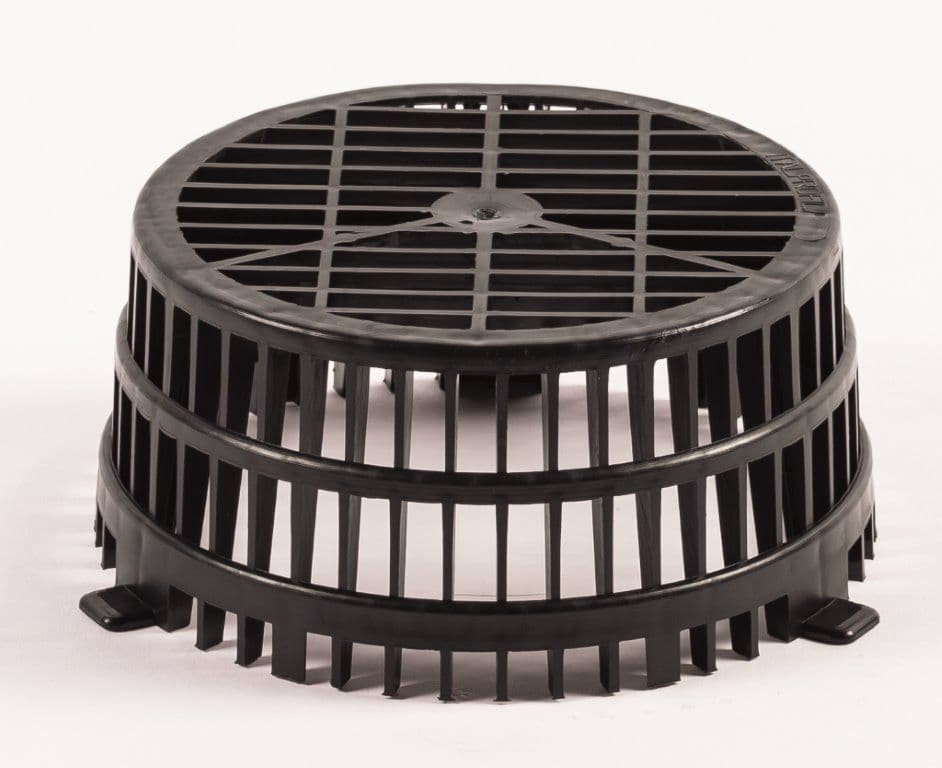

Ryno TPF Flat Flange Outlet Leaf Guard.
The leaf guard serves as a protective barrier, effectively blocking the entry of sizable debris or leaves into the drainage system. This proactive measure prevents potential blockages that can inflict harm on pipes or buildings.

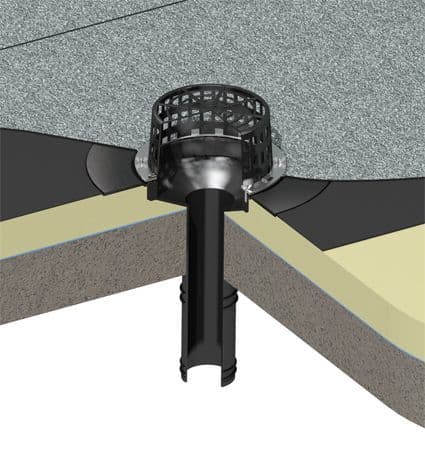

You have the flexibility to secure this leaf guard using either the Mounting Spigot or the Mounting Ring. The Mounting Spigot offers a versatile solution, as it easily screws or push-fits into the leaf guard. You can then customize the spigot wings to match your pipe work's diameter, ensuring a snug fit. Afterward, slide the entire unit into place.
Alternatively, the Mounting Ring features teeth on the lower section, which seamlessly embed into warm Felt, Bitumen, or Asphalt coverings. The leaf guard effortlessly clips into position using the side tabs. Please note that the Mounting Ring is not suitable for membrane-type roof coverings, as the teeth underneath could potentially compromise the integrity of your waterproofing membrane roof. Elevate your roofing installation with Ryno's Flat Flange Outlet Leaf Guard for enhanced protection and functionality.
Leafguard Balloon:
- 60mm Diameter at the top.
- 80mm height.

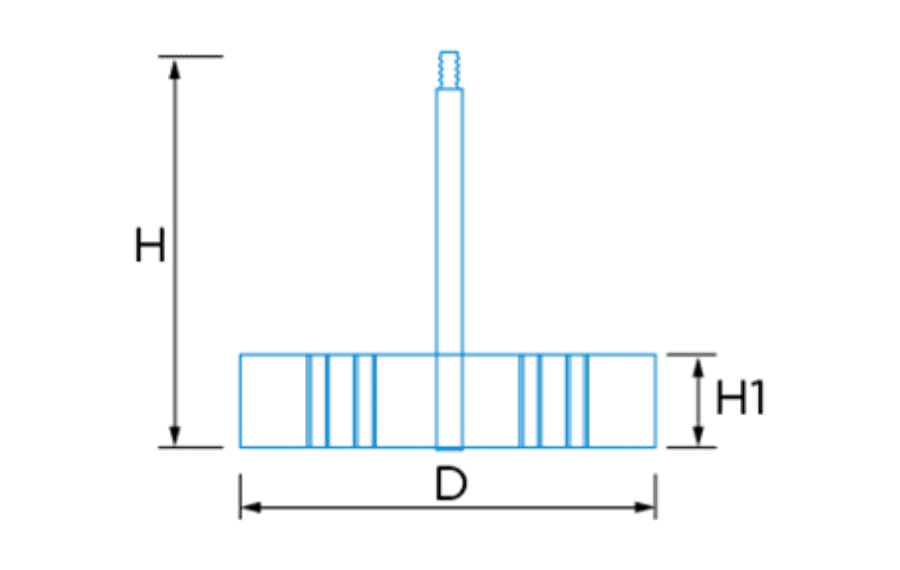

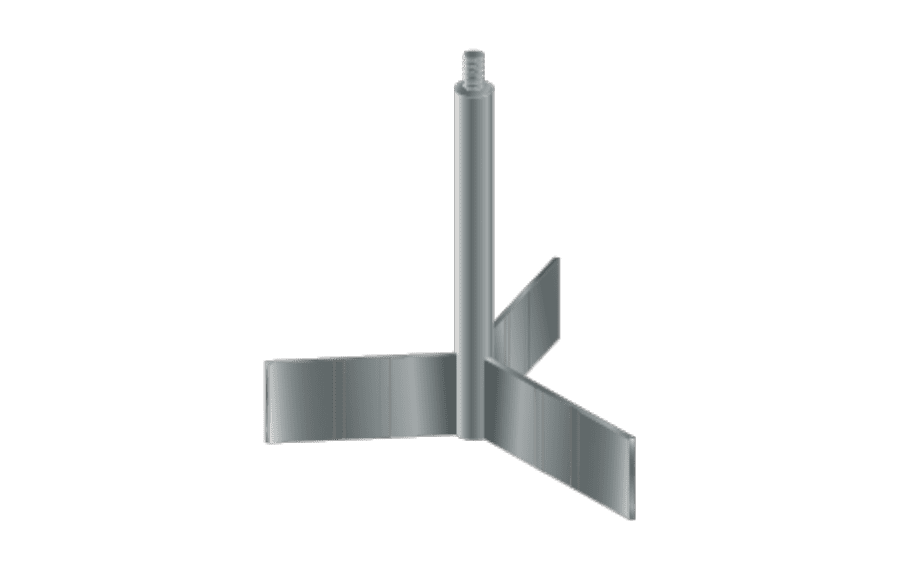

Mounting & spigot
- 160mm overall height.
- 195mm overall wing diameter.
- 40mm wing width/height.

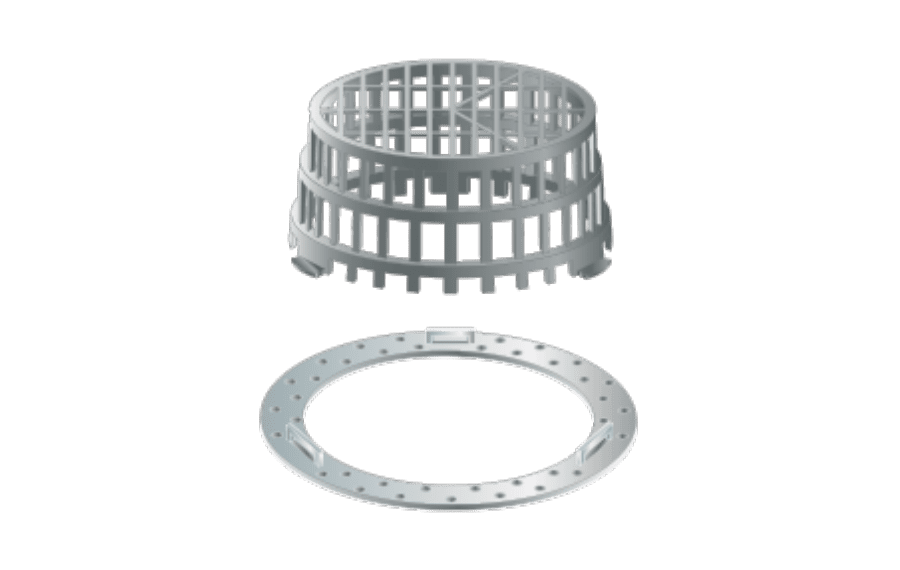

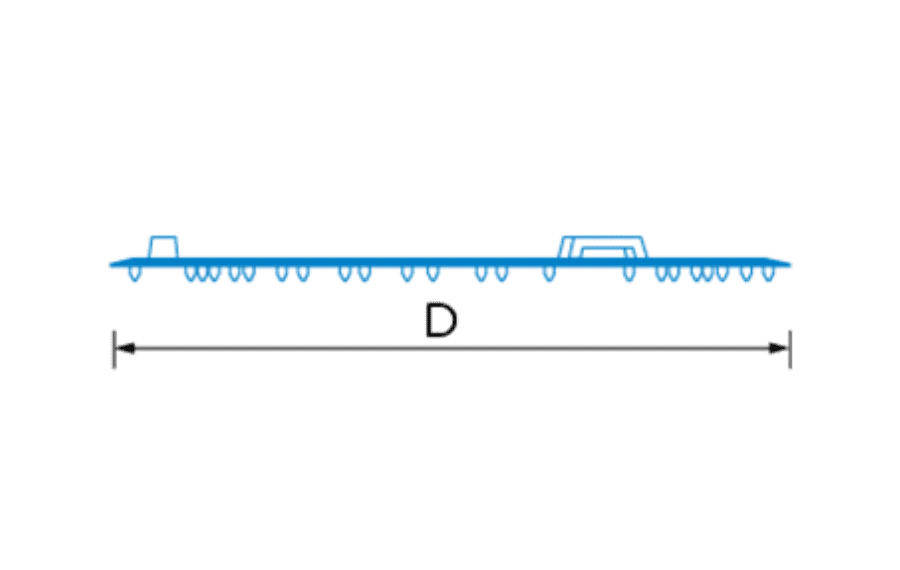

Mounting Ring
- 220mm diameter
Sold as one single Leafguard Balloon with either a Spigot or Mounting Ring unit included depending on your selection. Each item can be purchased separately if required by contacting us directly.
Additional Information for Ryno Flat Flange Outlet Leaf Guard
Technical Information
Delivery Information
The Ryno Outlets are delivered direct to your chosen location typically in 1 -3 workings days.
We strongly recommend refraining from booking, scheduling, or commencing any works until you've received your complete materials order. Your satisfaction and seamless project execution are our top priorities.
FAQ's
You have the flexibility to secure this leaf guard using either the Mounting Spigot or the Mounting Ring. The Mounting Spigot offers a versatile solution, as it easily screws or push-fits into the leaf guard. You can then customize the spigot wings to match your pipe work's diameter, ensuring a snug fit. Afterward, slide the entire unit into place.
Alternatively, the Mounting Ring features teeth on the lower section, which seamlessly embed into warm Felt, Bitumen, or Asphalt coverings. The leaf guard effortlessly clips into position using the side tabs. Please note that the Mounting Ring is not suitable for membrane-type roof coverings, as the teeth underneath could potentially compromise the integrity of your waterproofing membrane roof. Elevate your roofing installation with Ryno's Flat Flange Outlet Leaf Guard for enhanced protection and functionality.
*** Please note that you will need to purchase a Mounting Ring or Spigot with each leaf guard. You will not be able to secure the leaf guard in place without one of these options. ***
The leaf guard serves as a protective barrier, effectively blocking the entry of sizable debris or leaves into the drainage system. This proactive measure prevents potential blockages that can inflict harm on pipes or buildings.
Installing and maintaining these guards is a straightforward process, involving simple placement through either pushing or clipping, delivering reliable protection.
To maintain optimal roof drainage, we recommend periodic cleaning of the leaf guard to remove any accumulated debris or leaves. It's crucial to prioritize safety throughout your maintenance tasks. If you have any doubts or concerns, don't hesitate to seek assistance from a qualified individual with proper training for working at heights and on flat roof areas.
Product Dimensions
Leaf Guard
160mm Diameter at the top
80mm height
Mounting spigot
160mm overall height
195mm overall wing diameter
40mm wing width/height
Mounting Ring
220mm diameter
