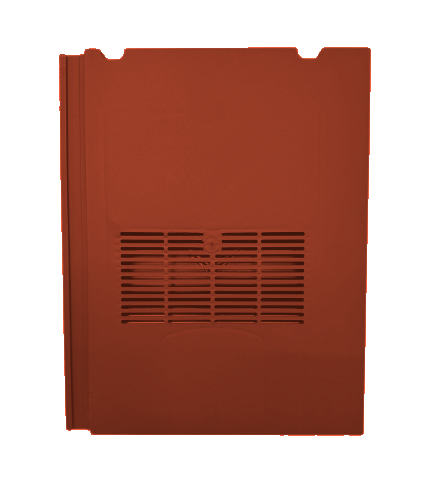

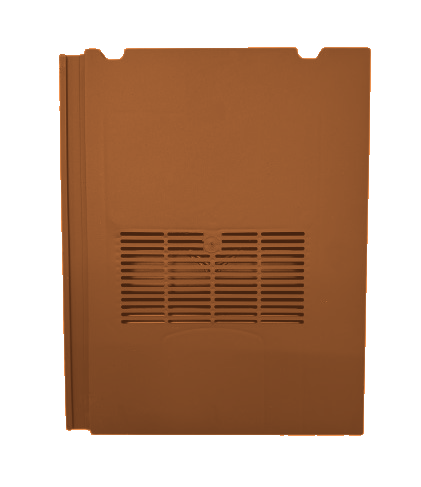

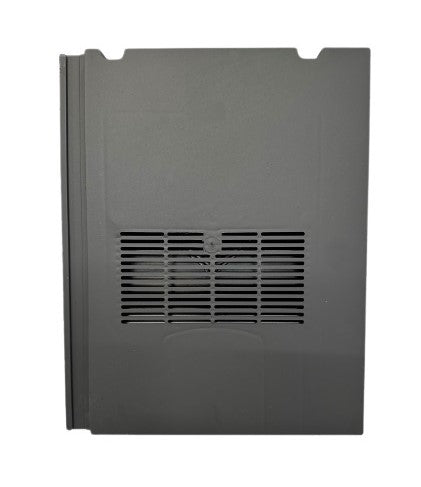

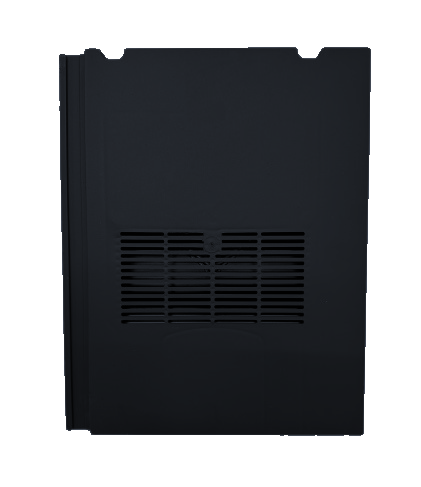

shop@flatroofingsystems.co.ukNon-Profile Concrete Roof Tile Vent with Pipe Adaptor
Manufacturer/Brand: JWS Ltd
SKU:NON-PROFILE/BROWN
In stock
Couldn't load pickup availability
The Non-Profile Concrete Roof Tile Vent with 110mm Pipe Adaptor is for flat interlocking concrete roof tiles with no profile. Ideal for ventilating roof spaces, voids, and soil vent pipes, this tile vent can also be connected to mechanical extraction systems such as bathroom and kitchen extractor fans.
Designed to replace a single roof tile, this vent provides an effective and discreet way to introduce airflow while maintaining the integrity and appearance of the roof. Suitable for roof pitches from 22.5°, it delivers a free ventilation area of 10,000mm², helping to prevent condensation build-up and improve overall roof performance.
This non-profile vent is compatible with a wide range of flat concrete tiles including Marley Modern, Marley Duo Modern, Redland Mini Stonewold, Sandtoft Calderdale, Russell Grampian and Russell Highland.
Manufactured from high impact, UV stabilised styrene, the vent is built to withstand long-term exposure to the elements. An external grille with 4mm spacing helps prevent the ingress of wind-driven rain, debris, insects and vermin, while internal drainage channels safely direct any water out onto the tiles below.
Supplied complete with a 110mm pipe adaptor, the vent allows for easy connection to flexible ducting for mechanical extraction systems. An integrated clip ensures a secure and reliable fit within the roof covering.
Key Features & Benefits
- Suitable for flat interlocking concrete roof tiles.
- Compatible with Marley Modern, Duo Modern, Redland Mini Stonewold, Sandtoft Calderdale, Russell Grampian and Highland.
- Free ventilation area of 10,000mm².
- Suitable for roof pitches from 22.5°.
- Replaces a single roof tile for quick and easy installation.
- External grille with 4mm spacing to prevent rain, insects and vermin ingress.
- Built-in drainage channels to safely disperse any water.
- Manufactured from UV stabilised, high impact styrene.
- Integrated clip for secure installation.
- Supplied with 110mm pipe adaptor for ducting connections.
- Suitable for soil vent pipes and mechanical extraction systems.
Available Colours
Brown, Terracotta, Red, Grey & Anthracite.
The images shown are for illustration purposes only. Colours may vary and should be used as a guide only.
Additional Information for Non-Profile Concrete Roof Tile Vent with Pipe Adaptor
Technical Information
Delivery Information
Delivery & Collection Information
Your Roof Tile Vents will be delivered directly to your chosen location via our trusted parcel courier partners. Standard delivery takes 2–5 working days, though this may be longer in remote areas.
We strongly recommend waiting until your full order has arrived before scheduling any work.
For those who prefer to collect, our vents are stocked at our depot. However, please contact us in advance to confirm availability of your required vent and colour before visiting.
