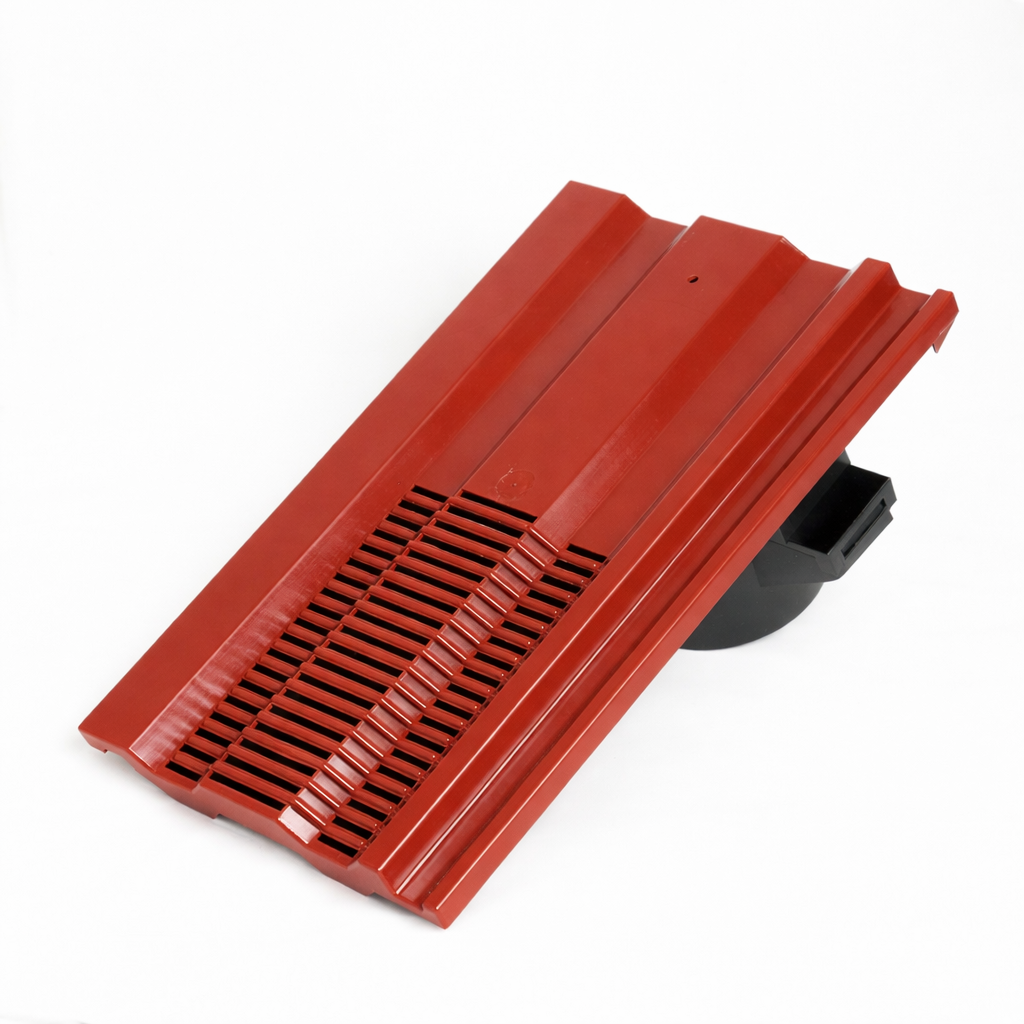

The Mini Castellated Roof Tile Vent with 4" Pipe Adaptor is a practical and reliable solution for ventilating tiled roofs. Designed to replace a single roof tile, this vent provides an easy connection point for soil vent pipes and mechanical extraction systems such as bathroom and kitchen fans.

Compatible with popular concrete tile profiles including Marley Ludlow Plus, Redland 49, Sandtoft Standard Pattern and Forticrete V2, this vent blends seamlessly into the roofline while delivering effective airflow performance.

With a free vent area of 7,500mm², it helps maintain proper ventilation and reduce the risk of condensation build-up within the roof space. Suitable for roof pitches from 22.5° and above, it is ideal for both new builds and refurbishment projects.

Manufactured from UV stabilised, high impact styrene, the vent is built to withstand long-term exposure to the elements. Integrated drainage channels and a protective grille ensure reliable performance in all weather conditions.

Key Features & Benefits:

• Complete with 4" pipe adaptor for easy connection to flexi-hose systems.
• Suitable for bathroom extractors, kitchen vents and soil vent pipes.
• Compatible with Marley Ludlow Plus, Redland 49, Sandtoft and Forticrete V2 tiles.
• Replaces a single tile for quick and straightforward installation.
• Free vent area of 7,500mm² for effective airflow.
• Suitable for roof pitches from 22.5° and above.
• Integrated under-base drainage channels to manage water ingress.
• External grille with 4mm spacing to prevent rain and insect entry.
• Secure fixing with integrated tile clips.
• Manufactured from UV stabilised, high impact material for long-term durability.
• Available in a range of colours to match common roof tile finishes.

Available Colours:

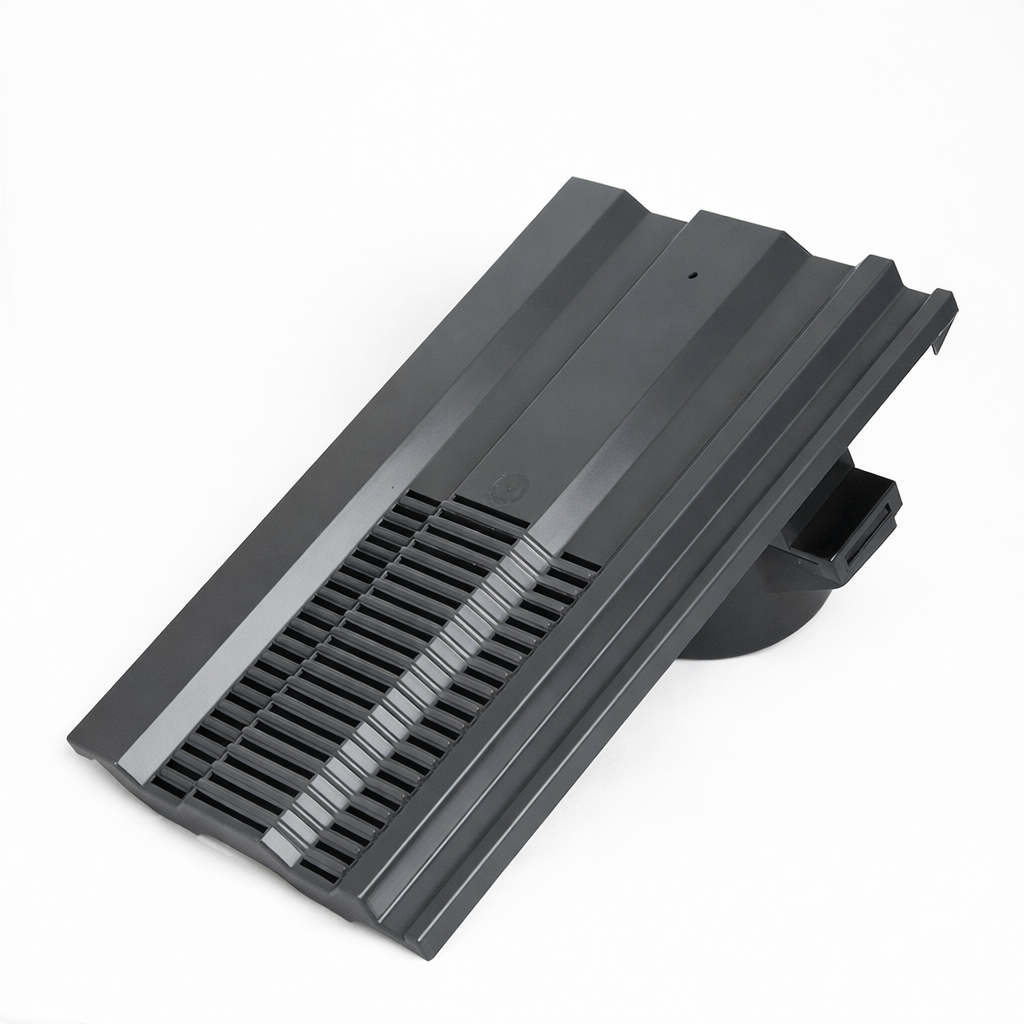

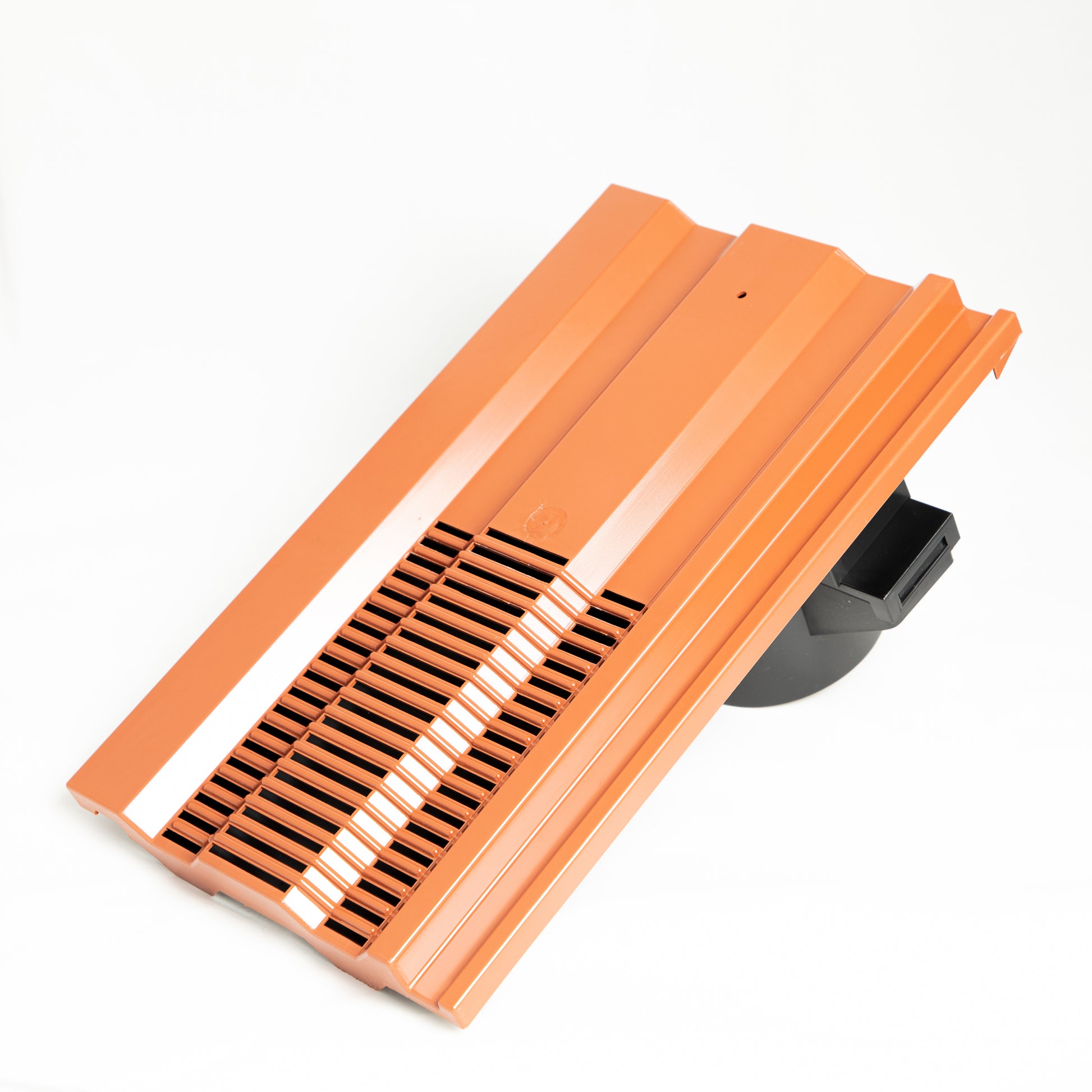

Brown, Terracotta, Antique Red, Grey and Anthracite.

The images shown are for illustration purposes only. Colours may vary and should be used as a guide only.
