Memtec Wall Chase Trim - 50mm x 20mm
Manufacturer/Brand: Memtec Ltd
SKU:2052
9977 in stock
Couldn't load pickup availability

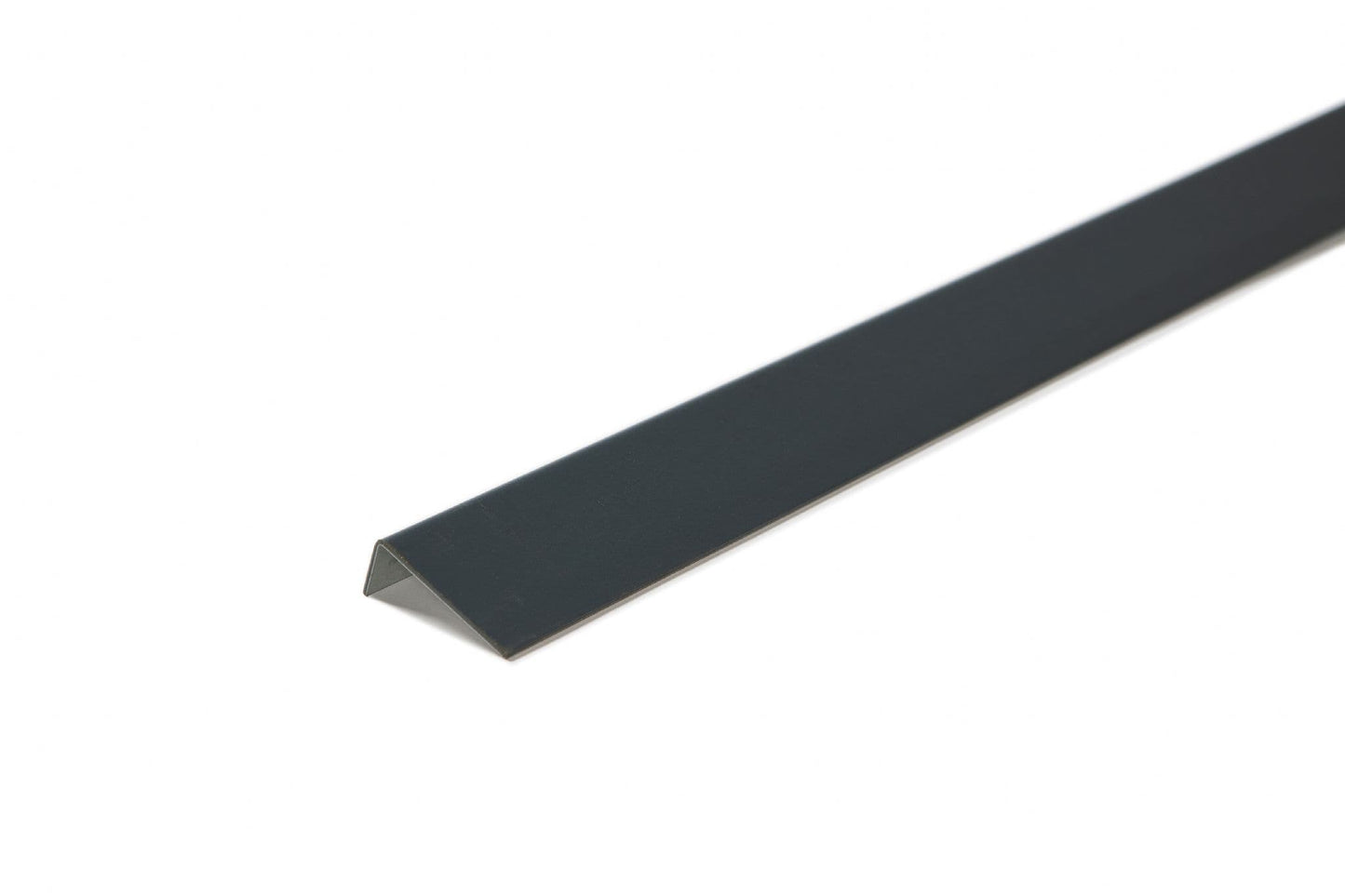

Memtec Wall Chase Trim is steel trim coated in Dark Grey PVC and is used to terminate an upstand detail on a Memtec PVC Single Ply Roof membrane Installation.
Each trim is 20mm x 50mm x 2m long.
The 20mm leg of the trim is placed into a chase cut into the upstand material and sealed off using sealant or sand and cement. The Membrane upstand can be directly hot air welded to the trim or the trim can be mechanically fixed through the membrane upstand.
We offer a full range of other Metal trims to complete your Memtec Roof Installation. Drip trims, Wall Chase Trim, Internal & External Angles, Wall Counter Flashing and Flat metal coated Sheets that you can have Fabricated Yourself.
Important Information:
To successfully install Memtec PVC Single Ply Membranes, extensive training and on-site guidance for a minimum of 12 months, along with costly specialized tools, are prerequisites. This product is not suitable for DIY enthusiasts or roofing/building contractors lacking adequate experience. Any errors stemming from inexperienced installation can nullify product warranties.
Images are representative only; colour and shading can vary in images and screen resolution. The RAL Colour Reference is RAL 7012 and Free Samples, and Information Packs can be Requested prior to Purchasing.
Additional Information for Memtec Wall Chase Trim - 50mm x 20mm
Technical Information
Delivery Information
Delivery Information
The Memtec Single Ply Range is delivered directly to your chosen location by our network courier partners typically with in 2 - 4 working days.
Deliveries will be completed on a variety of large HGV vehicles which may include Extra Large Articulated HGV Vehicles. Please consider any restrictions close to your location that may impede or stop your delivery from taking place. Please notify us in advance of any restrictions that you feel could be an issue to avoid any potential delays or additional charges being applied. The rolls will be placed on timber pallets and offloaded by a pallet truck and tail lift to the roadside only.
We strongly recommend refraining from booking, scheduling, or commencing any works until you've received your complete materials order. Your satisfaction and seamless project execution are our top priorities.
FAQ's
Please Note: Installation should only be attempted by suitably trained personnel.
If you are unsure and require further help or assistance, then please do contact us for further information.
Membrane Benefits & Features
A complete range of Memtec Roofing and Waterproofing Single Ply PVC Membranes to suit any most any flat roof type, including accessories
Suitable for flat roof applications of all sizes.
- 20 year Product Guarantee.
- BBA Certificate. Number: 14/5144.
- BBA confirmed life span in excess of 35 Years.
UV Resistant. - Self-extinguishing.
- Root Penetration resistant.
- Hot Air Welded Laps and Joints.
- Membranes are Mesh reinforced which provides dimensional stability.
- Vapour permeable. No Blisters or Bubbles.
Low temperature pliability. Down to minus 25°C without cracks. - Can be either Mechanically Fixed, Fully Bonded or Loose Laid and Ballasted.
- Lightweight and fast installation.
- Excellent Aesthetic appearance.
