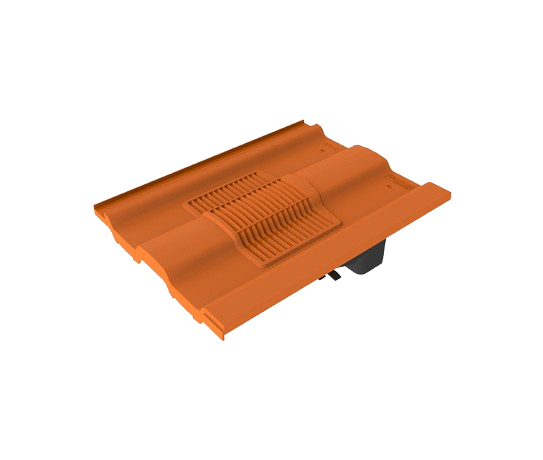

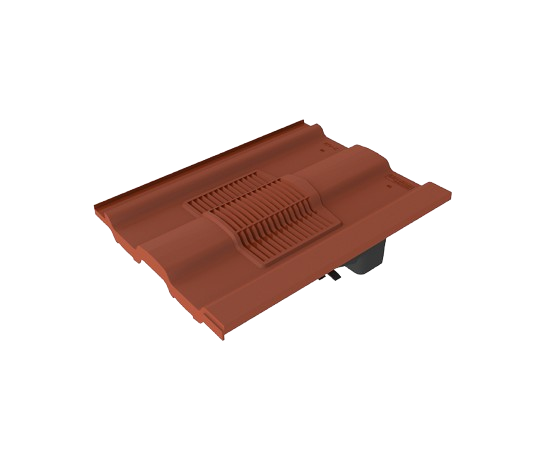

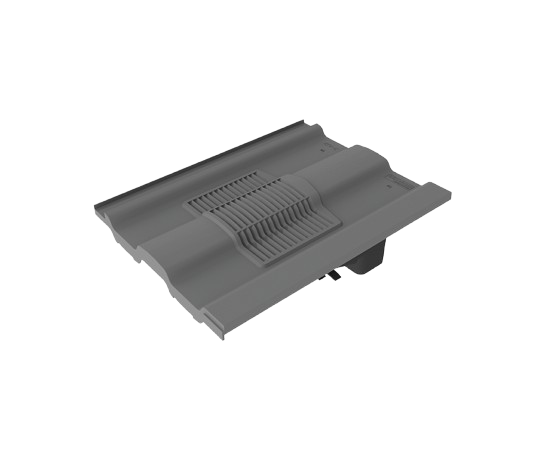

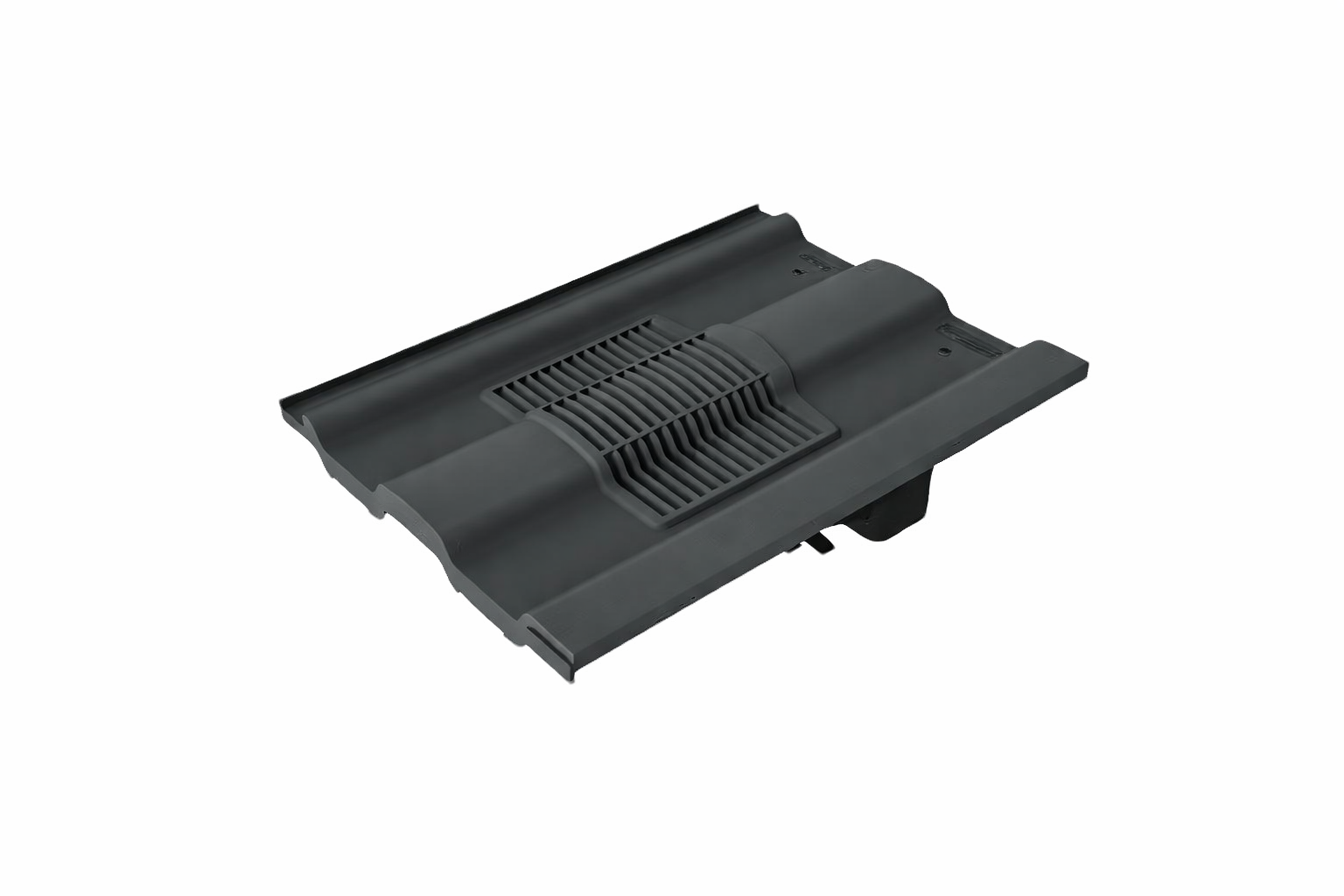

The Large Castellated Roof Tile Vent is a versatile, high-performance ventilation solution designed to suit a wide range of large format concrete interlocking roof tiles. Ideal for both new builds and refurbishment projects, this inline roof vent provides effective airflow while maintaining a neat, low-profile appearance on the roof.

Compatible with popular tile profiles such as Marley Ludlow Major, Redland Renown, Sandtoft Lindum, Russell Cheviot and Lagan Square Top, as well as most other square-topped concrete roof tiles.

Perfect for ventilating loft spaces, roof voids, bathrooms, kitchens, and soil vent pipes, this unit comes complete with a 110mm pipe adaptor, making it suitable for both natural and mechanical extraction systems.

Manufactured from durable, UV-stabilised high impact styrene, this vent is built to withstand long-term exposure to the elements while delivering reliable performance.

Key Features & Benefits:

• Suitable for most large format concrete interlocking roof tiles.
• Compatible with Marley Ludlow Major, Redland Renown, Sandtoft Lindum, Russell Cheviot, Lagan Square Top and similar profiles.
• Free ventilation area of 10,000mm² for effective airflow.
• Suitable for roof pitches from 22.5° and above.
• Ideal for loft ventilation, bathroom and kitchen extracts, and soil vent pipes.
• Supplied with standard 110mm pipe adaptor and connector.
• Allows connection to flexible ducting for mechanical extraction systems.
• Concealed drainage channels direct rainwater safely onto tiles below.
• External grille with 4mm spacing helps prevent wind-driven rain ingress.
• Helps keep out large insects and vermin.
• Integrated tile clips for secure and easy installation.
• Manufactured from UV-stabilised, high impact styrene for long-lasting durability.

Available Colours:

Brown, Terracotta, Antique Red, Grey & Anthracite.

The images shown are for illustration purposes only. Colours may vary and should be used as a guide only.
