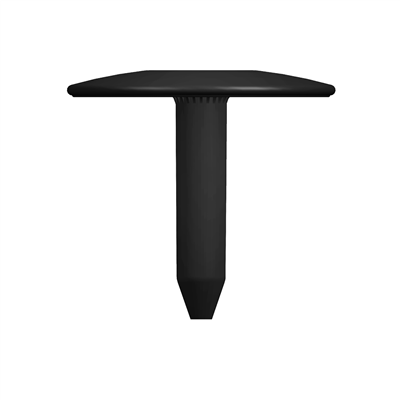

Eurofast TLK-75 Thermally Broken Pressure Plate Tubes for Multi Layered Flat Roof Membranes & Insulation Boards.

The Eurofast TLK-75 Thermally Broken Pressure Plate Tubes are designed specifically for securing multi-layered flat roof membranes and insulation boards to various roof deck substrates. These polypropylene Tube washers feature the renowned Eurofast headmark, ensuring high performance and reliability.

Key Features:

• Material: High-quality Polypropylene (PP) for durability and strength.
• Design: Thermally broken to minimize thermal bridging and enhance energy efficiency.
• Certification: ETA 23/0651, ensuring compliance with stringent quality standards.
• Versatile Compatibility: Works seamlessly with Eurofast EDS-H-50 (timber), EDS-B-48 (steel or timber), and EFHD-63 (concrete) fasteners.
• Optimal Performance: Designed to handle compression of insulation with a tolerance of at least 15mm.

Product Specifications:

• Article Category: TLK-75.

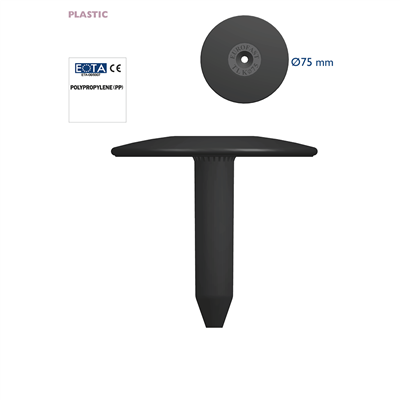

• Dimension Disk: Round diameter 75mm.
• Tube Material: Polypropylene PP.
• Optical Characteristic Tube: Eurofast marking.
• Sizes Available: 35mm, 65mm, 85mm, 105mm, 135mm, 165mm, 185mm.
• Packaging: Box of 125 or 250 dependent on size selected.

Installation Guidelines:

Select Appropriate Length: Choose the tube washer length based on the insulation thickness, allowing a 15mm tolerance for compression. For instance, a 100mm insulation board requires the TLK-75085 85mm tube washer.

Fastener Selection: Consider the recommended penetration or embedment of the roofing fastener, factoring in the total build-up of the waterproofing system (including membrane, insulation, and vapour control layer). Note that the use of a plastic tube washer reduces the effective fastener length by 20mm.

Example Installation: For mechanically fastening a 100mm insulation to a timber substrate, use TLK-75085 along with EDS-H-50055 or EDS-B-48060 fasteners.
