Abutment Flashing – 110° Polyester Painted Finish, 3m Length
Manufacturer/Brand: Flat Roofing Systems
SKU:ABUTMENT/50X50/J-GREEN
In stock
Couldn't load pickup availability

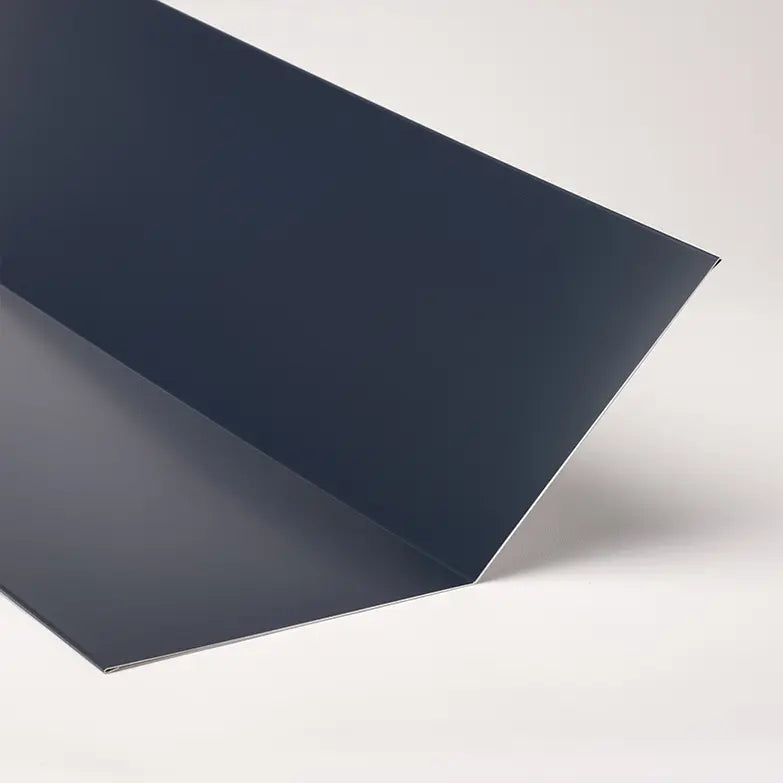

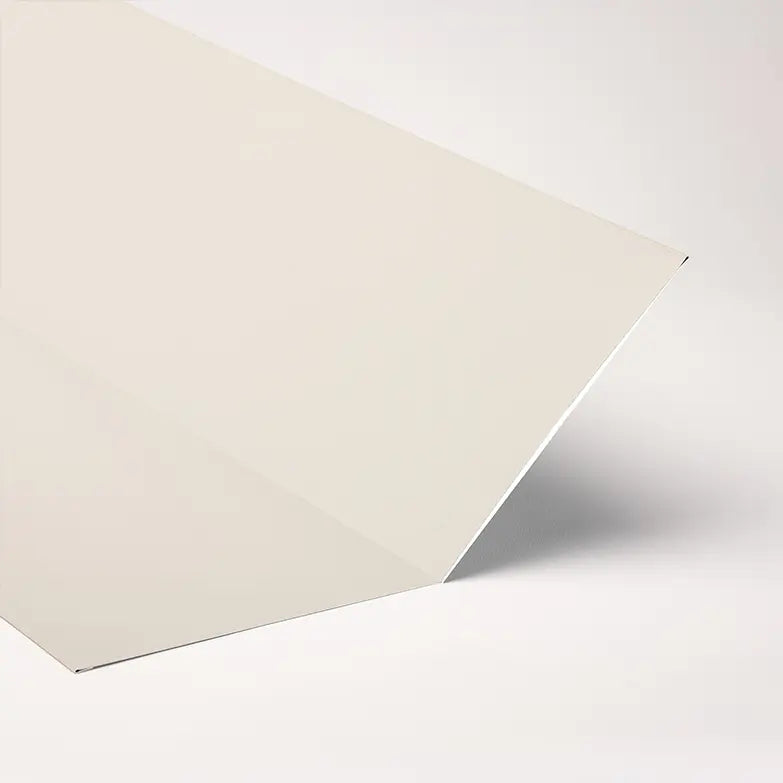

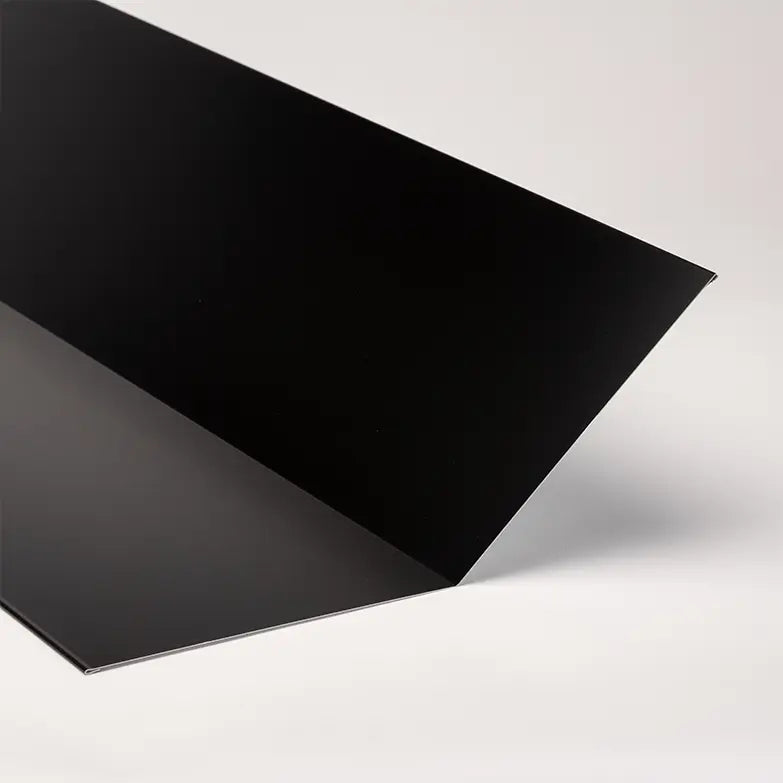

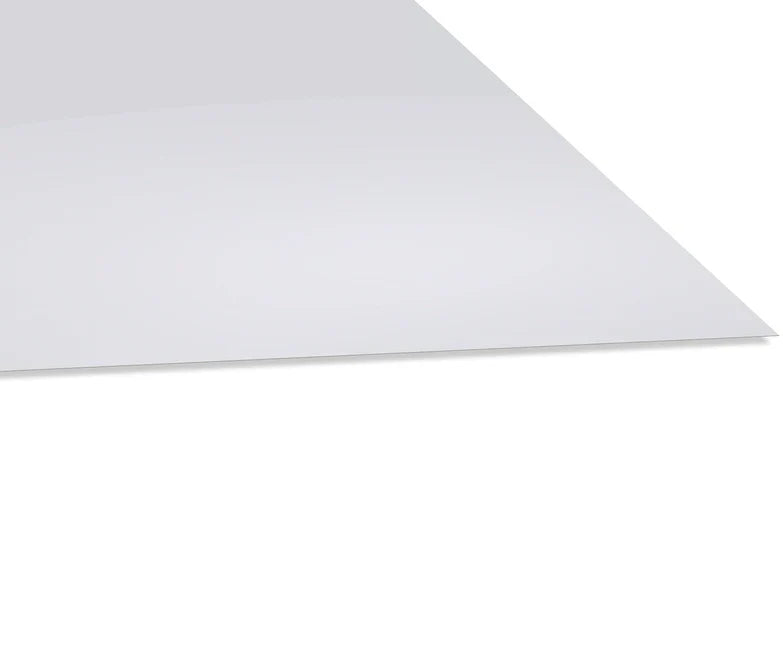

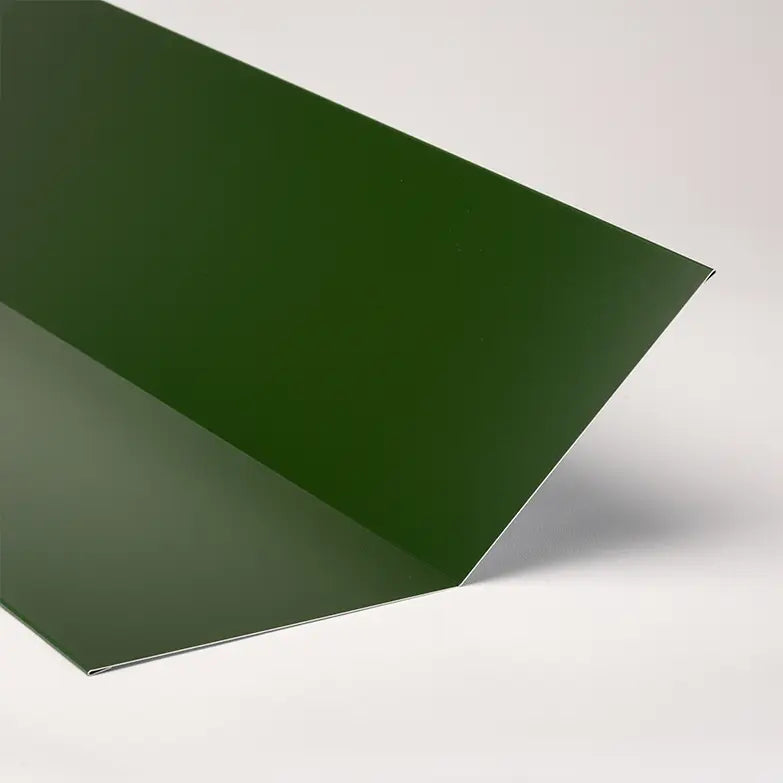

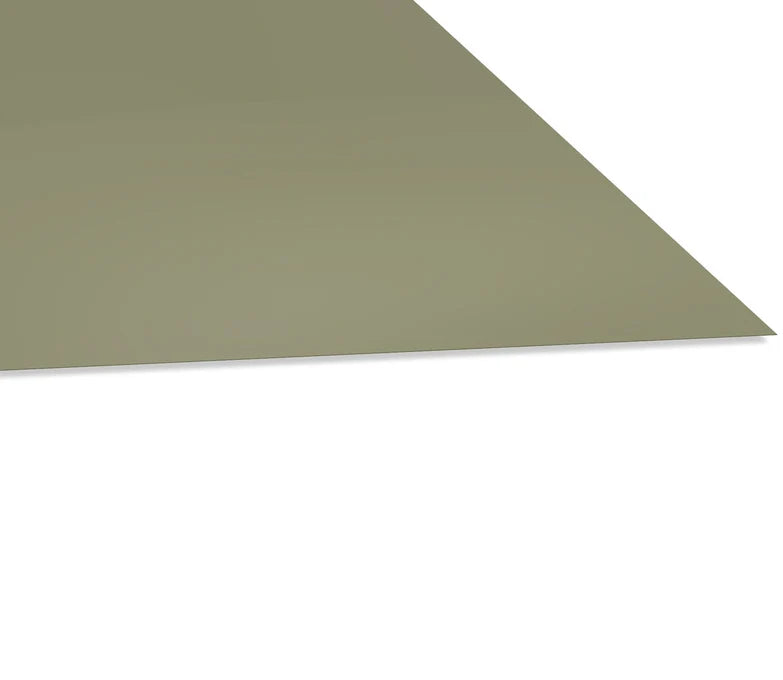

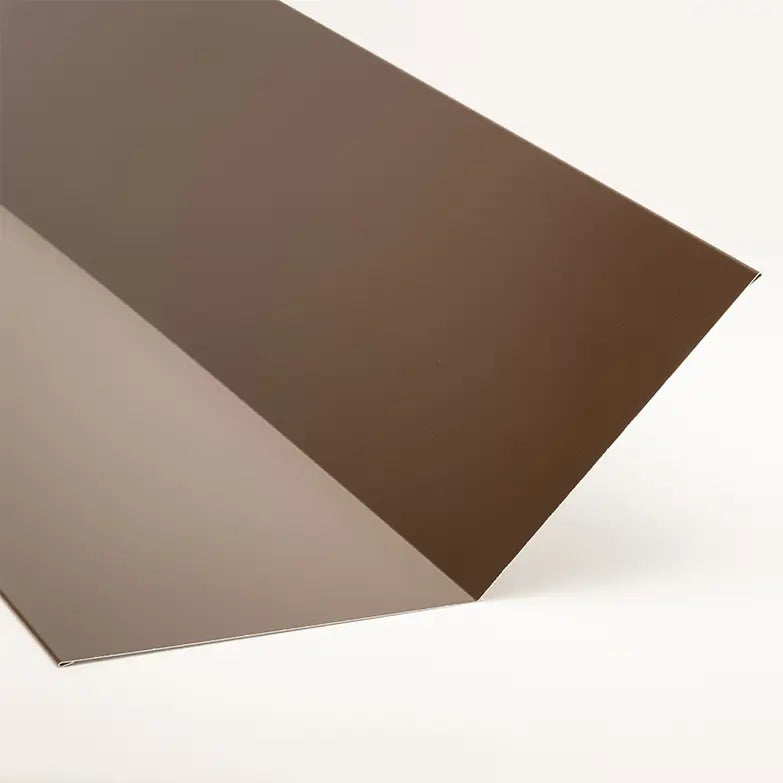

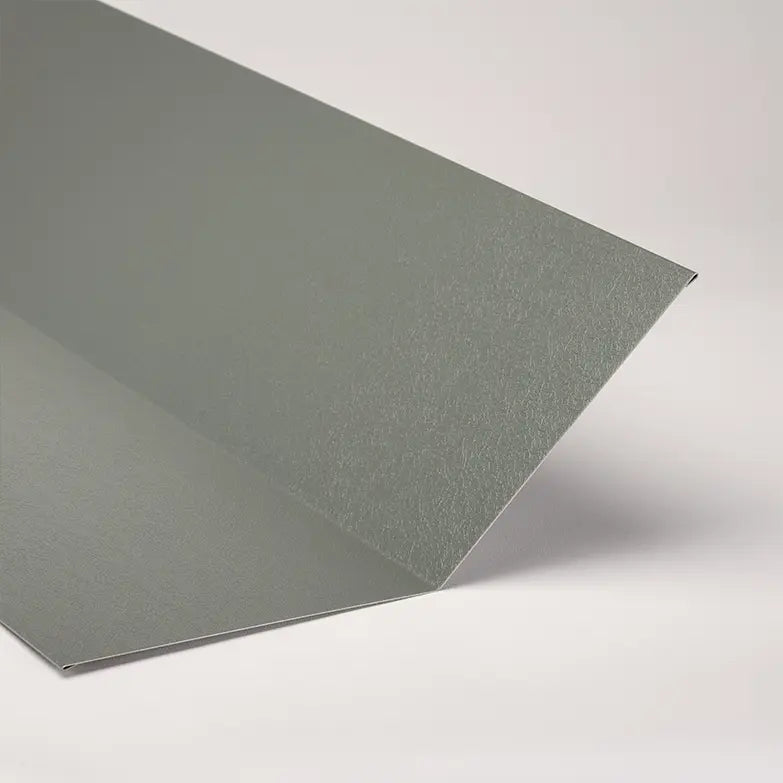

These Abutment Flashings are expertly fabricated for a seamless and polished finish. Fabricated from robust 0.7mm polyester-painted steel sheets, these flashings offer a sleek, smooth finish that perfectly matches your roof sheets.
Abutment flashings can be used to flash the top of lean-to roofs to ensure a watertight finish, and can also be used where roofs meet walls. They provide the same functionality as a standard barge board but the painted finish is on the internal angle.
Each Abutment Flashing measures 3 metres in length and is coloured coated on the internal surface only. Available in a variety of girths to suit different project requirements. The 110-degree angle design ensures reliable coverage and protection, while the 10mm safety-welted edges along each long side only provide additional strength and a secure fit.
Ideal for both domestic and commercial applications, these barge flashings deliver exceptional weather resistance, helping to safeguard your roofing system from wind and rain while enhancing its overall appearance.
Key Features:
- Material: Made from 0.7mm polyester-painted steel for durability and aesthetics.
- Length: 3m lengths for excellent coverage.
- Design: 110° angle with 10mm safety-welted edges for added strength and secure installation.
- Finish: Smooth polyester-painted surface to match your roof sheets.
- Versatility: Available in various girths to suit different building needs
These abutment flashings are compatible with most of our metal roof sheets.
While we provide a selection of commonly ordered sizes, our abutment flashings are custom-fabricated from flat metal sheets to meet your specific requirements. This flexibility allows us to supply any size you need. If you require a custom size, please contact us directly for a tailored quote.
Important Notice:
Please be aware that our stell flashings are custom-cut & fabricated to your specific requirements and supplied as a bespoke product. As a result, we do not accept returns or offer refunds on these items. Although some popular sizes arfe offered and displayed here these are still bespoke fabricated.
We strongly recommend that you carefully check and double-check all details of your order before confirming to ensure accuracy and avoid any issues.
If you have any questions or need assistance, please contact us before placing your order.









Additional Information for Abutment Flashing – 110° Polyester Painted Finish, 3m Length
Technical Information
Delivery Information
Delivery Information
We want to ensure you have all the necessary details regarding the delivery of your order. Please read the following information carefully before placing your purchase.
Important Considerations:
- Size & Weight: Steel profiled sheets and flashings are long, heavy, and prone to damage if not handled correctly. This is reflected in the delivery costs and criteria.
- Bespoke & Non-Returnable: All steel sheets and flashings are cut to size and custom-fabricated to your specifications, making them strictly non-returnable and non-refundable under any circumstances.
- Order Accuracy: We strongly urge you to double-check all details before ordering, including lengths, quantities, colours, and sizes. Once your order is placed and processing has begun, no changes can be made.
Delivery Timescale
Standard delivery is typically 4 - 10 working days, but this may be extended depending on your location or order volume.
If there are delays, we will inform you as soon as possible.
Delivery Vehicles & Access Restrictions
Deliveries are made using large and extra-large rigid or articulated heavy goods vehicles. It is your responsibility to notify us of any delivery restrictions that may prevent or delay the delivery. This includes, but is not limited to:
- Weight or height restrictions.
- Time-restricted roads.
- Limited access for large vehicles.
Failure to inform us of such restrictions may result in a failed delivery. If materials need to be returned to the manufacturer and re-delivered, additional charges will apply for redelivery. Any unreasonable waiting time is also chargeable.
Unloading Responsibilities
Mechanical unloading is NOT included. The driver will assist with manual unloading, but you must be present to help.
Unloading is your responsibility and at your own risk.
We strongly advise following health and safety guidelines, including wearing suitable clothing and protective gloves to prevent cuts or grazes from sharp edges.
Local Collection & Stock Availability.
We hold a limited stock of steel box profile sheets in select sizes and colours at our depot. These can be collected in person or delivered locally using our own vehicles. If you are interested in this option, please contact us directly to discuss availability.
For further assistance, feel free to get in touch before placing your order.
