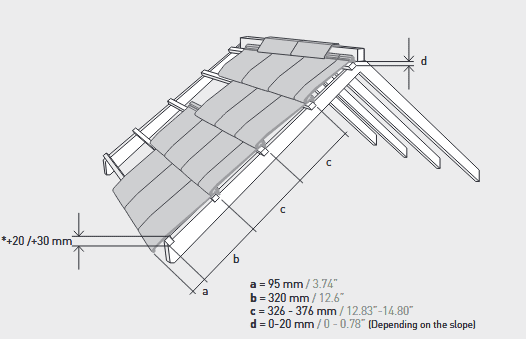

Planum roof tiles gauge (batten spacing)
The batten spacing for Planum shallow pitch roof tiles is as follows:
- The total distance between the first eave batten and the second should be 320mm(distance b). The difference in the height of the batten will depend on the width of the crawler.
- If the eave batten are 30mm wide or less, the eaves must be+30mm high.
- If the batten is wider than 30mm with +20mm height is sufficient. Same as other mechanical tiles.
- Subsequent batten spacing (gauge) can be 326mm - 376mm
